| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Maximum Memory | 256GB | |
| Supported Memory | DDR5 | |
| Graphics | ||
| Graphics | 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz | |
| Expansion Slots | ||
| Expansion Slots | PCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) M.2 Socket 3x M.2 | |
| Storage | ||
| Supported Storage | 3 M.2 slots (including PCIe Gen 5 x4) | |
| Network | ||
| LAN | 5G LAN | |
| Wireless | Wi-Fi 7 | |
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| BIOS | ||
| BIOS | Flash BIOS Button | |
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) | |
| Display Port | 1x DisplayPort 1.2 | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 Series Processors | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports | |
| Others | ||
| Wireless Communication module | Wi-Fi 7 and Bluetooth 5.4 | |
| Special feature | Back-connect design | |
| Warranty | ||
| Warranty | 3 Years Warranty | |

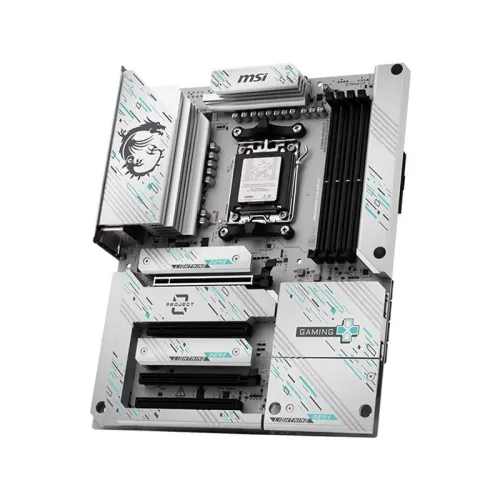

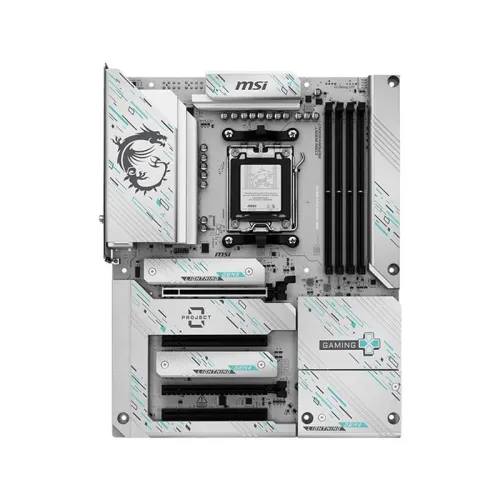

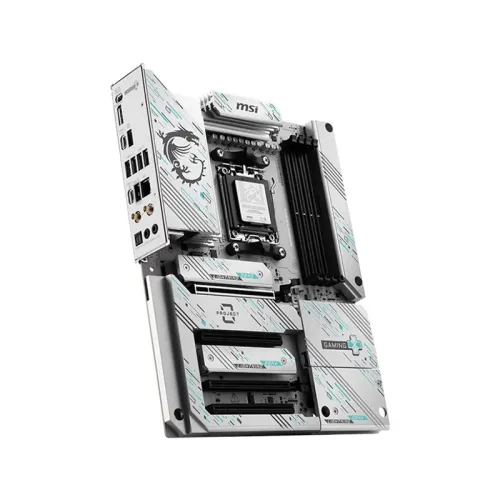

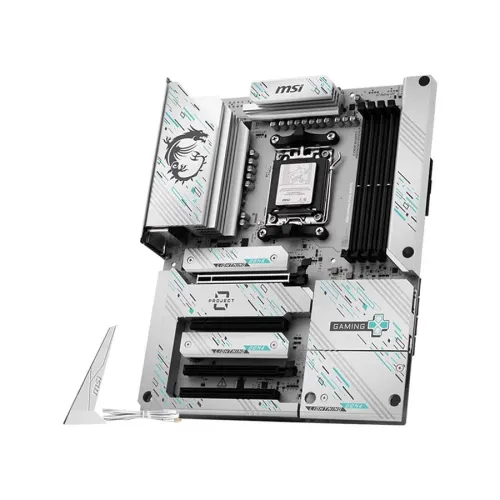

The MSI B850 GAMING PLUS PZ is an ATX motherboard built for modern AMD Ryzen desktop systems, designed around the AM5 socket platform. It supports AMD Ryzen 9000, 8000, and 7000 series desktop processors, making it a strong foundation for both gaming-focused rigs and high-performance productivity setups. With DDR5 memory support and a maximum capacity of up to 256GB, this board is well-suited for users who want room to grow—whether you’re upgrading RAM for heavier multitasking, running memory-intensive creative workflows, or building a future-ready system.
Equipped with 4 memory slots, the MSI B850 GAMING PLUS PZ supports DDR5 memory with a maximum capacity of 256GB. This makes it a practical choice for gamers who want smoother performance in demanding titles, as well as creators who benefit from larger memory headroom for rendering, editing, and complex projects. Compared to older DDR generations, DDR5 is designed to deliver improved performance characteristics for contemporary platforms, helping your system feel more responsive under load.
For connectivity, the motherboard includes Wi‑Fi 7 and Bluetooth 5.4, enabling faster wireless networking and reliable device pairing. This is especially useful for setups where running Ethernet isn’t convenient, such as living-room gaming PCs, compact workstations, or systems placed farther from the router. Wi‑Fi 7 support also helps future-proof your build for newer wireless environments, while Bluetooth 5.4 supports a wide range of peripherals like headsets, controllers, and other compatible devices.
In addition to wireless, the board features a 5G LAN port for dependable wired networking. Wired connections are often preferred for competitive gaming and stable streaming because they typically reduce latency and improve consistency. If you’re building a system for online gaming, large downloads, or uninterrupted media streaming, the 5G LAN option provides a strong baseline for performance and reliability.
The MSI B850 GAMING PLUS PZ offers three M.2 slots, including one PCIe Gen 5 x4 slot for high-speed SSDs. This configuration is ideal for users who want a fast boot drive plus additional storage for games, libraries, and project files. PCIe Gen 5 x4 support is particularly valuable when you plan to use next-generation NVMe SSDs, helping you maximize throughput for large file transfers and faster application loading. For builders, multiple M.2 slots also simplify upgrades—adding storage later without needing to replace existing drives.
A back-connect design is included to improve cable management and airflow inside the chassis. This helps keep the interior tidy, reduces cable clutter near airflow paths, and can make maintenance and upgrades easier over time. If you care about aesthetics—especially with the clean white body color—this layout supports a more organized build appearance while still focusing on practical cooling benefits.
Designed for the AM5 socket and compatible with AMD Ryzen 9000/8000/7000 series processors, the MSI B850 GAMING PLUS PZ is a solid choice for users planning a long-term upgrade path. Pair it with DDR5 memory and modern storage to create a system that can evolve as your needs change—whether that means adding more RAM, expanding SSD capacity, or improving your networking setup. For buyers in Bangladesh looking for a feature-rich MSI motherboard with Wi‑Fi 7, 5G LAN, and PCIe Gen 5 x4 storage support, this model is positioned as a strong all-rounder for contemporary AMD builds.
