| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B840 |
|
| Form Factor | mATX 226mmx243.84mm | |
| Memory | ||
| Number of Memory Slots | 2 x DDR5 UDIMM |
|
| Channel Supported | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
|
| Maximum Memory | 128GB | |
| Supported Memory | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek 8125D 2.5G LAN |
|
| Wireless | Wi-Fi 6E Solution | |
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| BIOS | ||
| BIOS | Flash BIOS Button |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 | |
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
|
| Display Port | 1x DisplayPort 1.4 |
|
| Audio | 1x Front Audio (JAUD) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Others | ||
| Wireless Communication module | The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Special feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

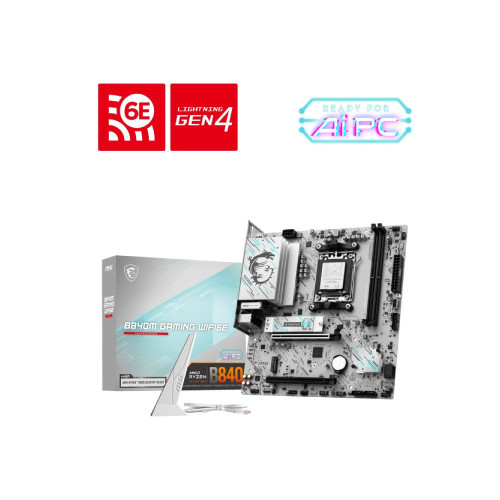

The MSI B840M GAMING WIFI6E AMD B840 Chipset AM5 mATX Motherboard is built for gamers and power users. It supports AMD Ryzen 9000, 8000, and 7000 series desktop processors with the newest AM5 socket. Built on the efficient AMD B840 chipset, the board provides dependable performance in a tiny micro-ATX form size. The MSI B840M GAMING WIFI6E Motherboard offers dual-channel DDR5 memory up to 128GB at speeds of 8000+ MT/s (OC), making it ideal for next-generation multitasking, gaming, and content creation. With AMD EXPO RAM overclocking and JEDEC standards, two PCIe x16 ports provide future expansion, while PCIe 4.0 support ensures high-speed data transfers and next-generation GPU compatibility. The MSI B840M GAMING WIFI6E board has two M.2 slots with PCIe 4.0 x4 compatibility and four SATA 6Gb/s connections. It supports both NVMe SSDs and conventional HDDs. Graphics outputs include HDMI 2.1 and DisplayPort 1.4, both of which allow up to 4K at 60Hz for spectacular images if your CPU has integrated graphics. Connectivity is another advantage of this MSI AM5 mATX Motherboard. It features Realtek 2.5G LAN and Wi-Fi 6E for fast and robust networking. The board also includes Bluetooth 5.3, which allows for seamless wireless device connection. It supports all modern peripherals thanks to several USB 5Gbps Type-A and Type-C connectors, as well as large internal headers. The MSI B840M GAMING WIFI6E AMD B840 Chipset AM5 mATX Motherboard comes with a three-year warranty.
