| Basic Information | ||
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
|
| Chipset | INTEL B760 | |
| Form Factor | mATX 220mmx243.84mm |
|
| Memory | ||
| Number of Memory Slots | 2 x DIMM | |
| Channel Supported | DDR5 | |
| Maximum Memory | 96GB | |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek RTL8125B 2.5Gbps LAN | |
| Wireless | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI | |
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
|
| DVI-D (s) | 1x D-Sub | |
| Display Port | 1x DisplayPort | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
|
| Others | ||
| Special feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 Year Warranty | |

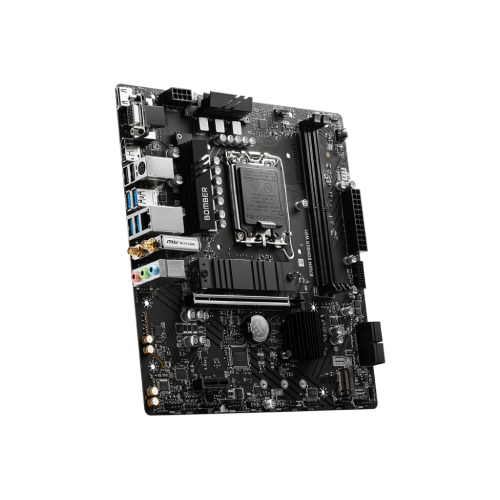

The MSI B760M BOMBER WIFI DDR5 13th and 12th Gen mATX Motherboard Supports 12th and 13th Gen Intel® CoreTM, Pentium® Gold, and Celeron® processors for the LGA 1700 socket. Supports DDR5 Memory, dual-channel DDR5-6400+ MHz (OC). Core Boost: With premium layout and digital power design to support more cores and provide better performance, Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. Audio BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience. Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength The MSI B760M BOMBER WIFI DDR5 13th and 12th Gen mATX Motherboard has a 3-year Warranty.
