| Basic Information | ||
| Supported CPU | AMD Ryzen 3000 Series, Ryzen 4000G Series, and Ryzen 5000 Series (AM4) | |
| Chipset | AMD B550 | |
| Form Factor | mATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Maximum Memory | Up to 128GB | |
| Supported Memory | DDR4 | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz | |
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices | |
| Storage | ||
| Supported Storage | PCIe 4.0 (NVMe SSD support) | |
| Network | ||
| LAN | Gigabit LAN | |
| Wireless | WiFi 6E & Bluetooth | |
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| BIOS | ||
| BIOS | Flash BIOS Port | |
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 | |

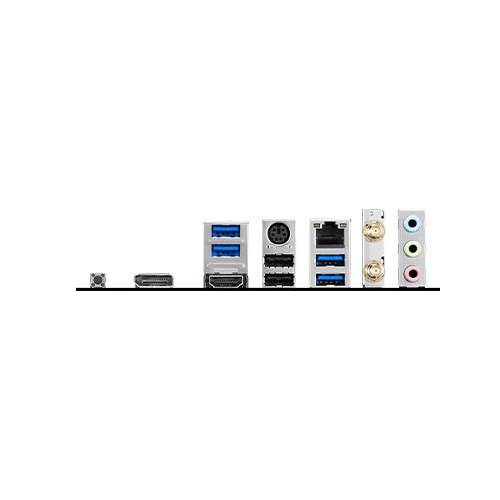

| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) | |
| Display Port | 1x DisplayPort 1.4 | |
| Audio | 1x Front Audio (JAUD) | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports | |
| Others | ||
| Wireless Communication module | WiFi 6E & Bluetooth | |
| Special feature | PCIe 4.0 support, reinforced PCIe slot, gaming-focused power design and optimized thermal solution | |
| Warranty | ||
| Warranty | 3 Years | |

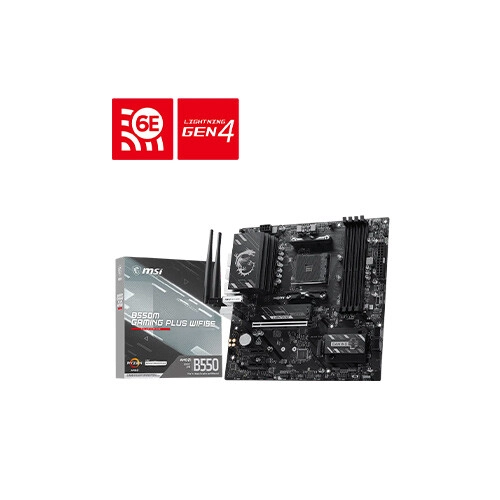

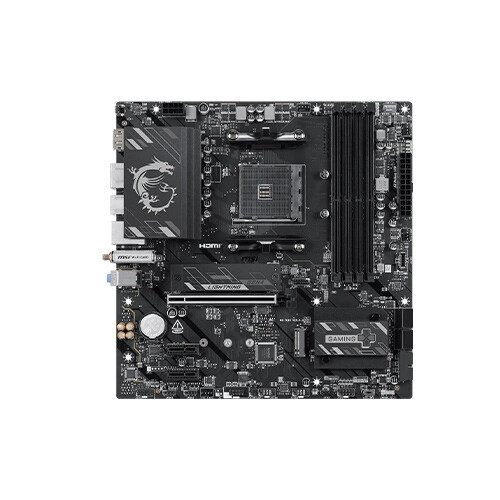

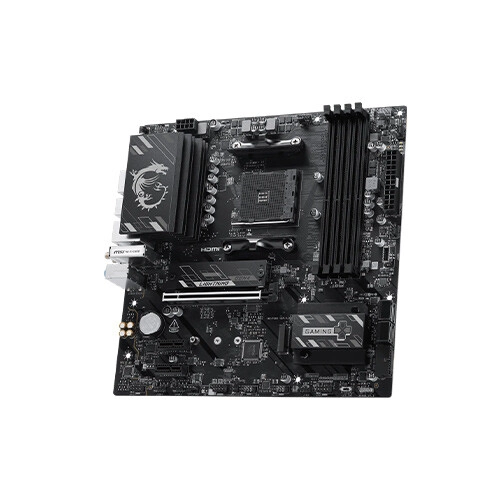

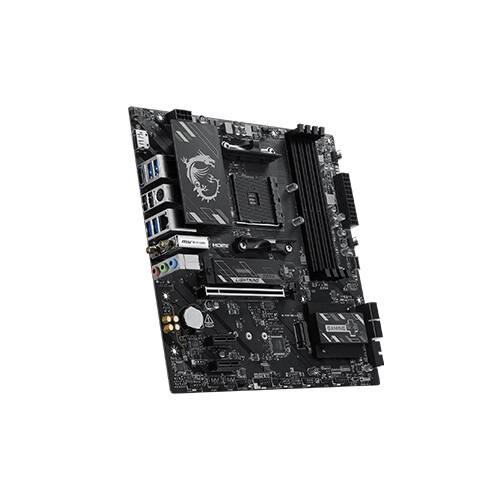

The MSI AMD B550M GAMING PLUS WIFI6E AM4 mATX Motherboard is designed for users who want a stable, high-performance AMD desktop platform in a compact mATX form factor. Built around the AMD B550 chipset and the AM4 socket, it supports AMD Ryzen 3000, Ryzen 4000G, and Ryzen 5000 Series processors, making it a strong choice for gaming builds, content creation workflows, and everyday productivity systems. If you’re planning a reliable upgrade path or starting a new PC, this motherboard provides a modern foundation with PCIe 4.0 support for faster components and smoother overall responsiveness.
A key advantage of this board is PCIe 4.0 support, which helps unlock better performance from compatible graphics cards and ultra-fast NVMe SSDs. In practical terms, this can mean quicker application launches, faster game loading times, and improved workflow speed when working with large files. Compared to older PCIe generations, PCIe 4.0 is especially beneficial for users who rely on NVMe storage for daily tasks, such as video editing, rendering, and multitasking across multiple applications.
For networking, the MSI B550M GAMING PLUS WIFI6E includes built-in WiFi 6E and Bluetooth, along with Gigabit LAN. This combination is ideal for users who want dependable online gaming and stable streaming without relying solely on wired connections. WiFi 6E is designed to deliver faster wireless performance and improved efficiency, which can be helpful in busy environments with many connected devices. Meanwhile, Gigabit LAN offers a straightforward option for low-latency, consistent performance—particularly useful for competitive gaming or large downloads.
This motherboard supports DDR4 high-speed memory, helping you maintain smooth system performance when running multiple programs at once. Whether you’re browsing, working on documents, editing media, or gaming, faster memory support can improve responsiveness and reduce bottlenecks during heavy workloads. It’s a practical fit for users building a balanced system where CPU performance and memory throughput work together for everyday efficiency.
The MSI B550M GAMING PLUS WIFI6E is built with a gaming-focused approach, featuring a premium power design, optimized thermal solution, and a reinforced PCIe slot. These elements are important for long-term stability—especially when running demanding games or sustained workloads. The board also includes multiple USB connectivity options, which is useful for connecting peripherals such as keyboards, mice, headsets, controllers, external storage, and other accessories without constantly swapping ports.
Choose this MSI AM4 mATX motherboard if you want a compact yet capable platform for Ryzen 3000/4000G/5000 series processors, with modern storage and networking features. It’s well-suited for gamers who want WiFi 6E plus Gigabit LAN, creators who benefit from PCIe 4.0 NVMe performance, and users upgrading an existing AM4 system who want a dependable B550-based upgrade. For buyers in Bangladesh searching for an MSI AMD B550M GAMING PLUS WIFI6E AM4 mATX Motherboard price in BD, Tech Land BD is positioned as a source for genuine MSI components, backed by official warranty and professional customer support.
