| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DIMM sockets | |
| Channel Supported | Dual channel memory architecture | |
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Storage | ||
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI | |
| USB Ports | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special feature | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Warranty | ||
| Warranty | 3 years | |

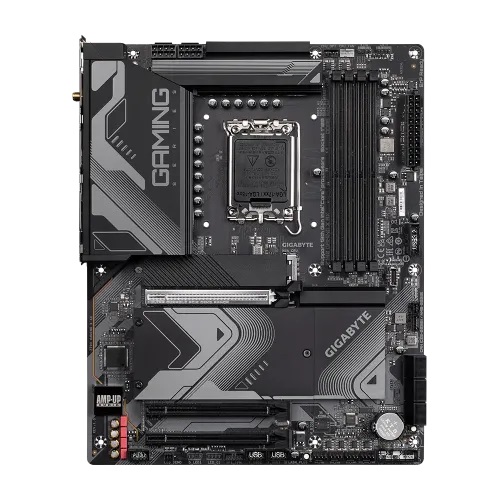

The GIGABYTE Z790 GAMING X AX 13th & 12th Gen ATX Motherboard accompanies Intel Attachment LGA 1700 that upholds thirteenth and twelfth Gen Series Processors. It conveys unmatched execution with twin 16+1+2 Stages Advanced VRM Arrangement. The motherboard accompanies 4x DIMMs with XMP 3.0 Memory Module Backing. The attachments support up to 128 GB (32 GB single DIMM limit) of framework memory. The motherboard is furnished with the PCIe 5.0 x16 opening and M.2 attachment intended to upgrade performing multiple tasks and enormous jobs, which is likewise prepared for another PCIe 5.0 designs card or capacity gadget. It upholds new PCIe 5.0 SSD with up to type 25110 M.2 space intended to give high power M.2 PCIe 5.0 SSD arrangements. The GIGABYTE Z790 GAMING X Hatchet is outfitted with Intel 2.5Gb Ethernet gives a quick lift to in general organize execution, smooth video altering, and quick information moves. Wi-Fi 6E carries the capacity to direct AR/VR encounters, get imaginative with less dropped associations, and download enormous documents at quicker speeds without slack. The high level cooling arrangement additionally gives the ideal stylish heatsink plan to keep your PC at an ideal temperature, keeping you from unforeseen framework crashes during the inventive approach. GIGABYTE Z790 GAMING X AX 13th & 12th Gen ATX Motherboard comes with 3 years of warranty.
