| Memory Specifications | ||
| Memory Size | 8 GB | |
| Memory Type | GDDR7 | |
| Core Clock | 2512 MHz (Reference card : 2497MHz) | |
| Memory Clock | 28 Gbps | |
| Bus Type | PCI-E 5.0 | |
| Memory Interface | PCI-E 5.0 | |
| CUDA Cores | 3840 | |
| Resolution | 7680x4320 8K | |
| Others | Triple fans with alternate spinning, copper heat pipes, vapor chamber; 0dB idle mode; metal backplate with thermal pads | |
| Output | ||
| Display Port | DisplayPort 2.1b (3 ports) | |
| HDMI | HDMI 2.1b (1 port) | |
| Maximum Display Support | Up to four displays | |
| Power Specifications | ||
| Recommended PSU | 550W | |
| Power Connector | 1x 8-pin | |
| Application Programming Interfaces | ||
| OpenGL | OpenGL 4.6 | |
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 199mm x 116mm x 40mm | |
| Fans | Triple fans | |
| Warranty | ||
| Warranty | 3-year warranty | |

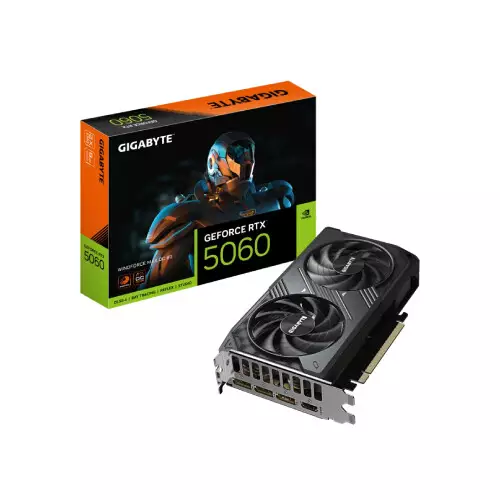

The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G is built for gamers, video editors, and AI tinkerers who want strong modern GPU performance without the bulk or noise of larger flagship cards. Designed as a mid-range powerhouse for 2025 rigs, it combines NVIDIA GeForce RTX technology with an out-of-the-box overclock to deliver an immediate performance edge for everyday play, creative rendering, and accelerated workflows.
With 8GB of GDDR7 memory running at a 28 Gbps memory clock, this graphics card is tuned for fast data access and responsive frame delivery. The 128-bit memory bus helps support efficient throughput for textures, game assets, and creative projects, making it a practical choice for users targeting high-resolution visuals such as 7680x4320 8K output and multi-monitor setups. If you’re building a workstation for editing timelines, texture-heavy scenes, or multi-display productivity, the 8GB GDDR7 configuration provides a balanced foundation for smooth day-to-day performance.
The card uses a PCI-E 5.0 interface, which helps ensure modern system compatibility and reduces the chance of bandwidth bottlenecks in newer platforms. This makes it a sensible upgrade path for users assembling a new desktop or refreshing an existing mid-tower with current-generation components, especially when pairing with fast storage and high-speed system memory for a snappy overall experience.
Gigabyte’s WINDFORCE MAX OC cooling system is engineered to keep performance stable during long sessions. It features triple fans with alternate spinning, copper heat pipes, and a vapor chamber design to manage heat effectively. The card is rated to stay under 68°C during demanding use, while noise remains below 44dB—ideal for gamers who prefer a quieter setup and creators who spend hours rendering or exporting. The 0dB idle mode further reduces fan activity when you’re not gaming, helping maintain a more serene environment for office work or light tasks.
For display output, the Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G includes three DisplayPort 2.1b ports and one HDMI 2.1b port. This configuration supports multi-streaming and high-resolution setups, including 8K@60Hz via DisplayPort for users who want crisp detail across demanding displays. The HDMI 2.1b output supports 4K@144Hz with VRR, which is especially useful for smoother gameplay on compatible TVs and monitors where variable refresh rate can reduce stutter and tearing.
Built to support DirectX 12 Ultimate and OpenGL 4.6, the RTX 5060 is positioned for broad compatibility across Windows and Linux environments and for creative applications that rely on modern graphics APIs. For gaming, it’s designed to handle ray-traced experiences at 1440p ultra settings in supported titles and to accelerate performance with DLSS 3.5 for upscaling. If you play competitive esports, NVIDIA Reflex support helps target sub-8ms latency behavior for more responsive gameplay. For creators, the card is also positioned for faster 4K exports with AV1 encoding, which can reduce waiting time during post-production.
This model uses a single 8-pin power connector and recommends a 550W PSU for reliable operation, including during overclocked performance bursts. It is designed with a compact ATX form factor (199mm length x 116mm width x 40mm height) in a sleek black finish, making it easier to fit into many mid-tower cases compared to larger triple/quad-fan monsters. For best results, pair it with an 80+ Bronze or Gold certified power supply (as recommended) to help maintain stable power delivery during gaming and rendering. With a rugged metal backplate and thermal pads for added durability, it’s a strong option for users who want a dependable GPU that looks clean and performs consistently over time.
The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G comes with a 3-year warranty, giving added peace of mind for long-term ownership. If you’re upgrading for 8K-capable output, multi-monitor productivity, or faster creative exports, this card offers a well-rounded mix of modern memory technology, quiet cooling, and high-bandwidth connectivity—making it a compelling choice for value-focused 2025 builds.
