| Basic Information | ||
| Input Voltage | 100-240V | |
| Input Current | 10A - 5A | |
| Input Frequency | 60-50Hz | |
| PFC | Active PFC (>0.9 typical) | |
| Efficiency | 90% Efficiency | |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP | |
| Maximum Power | 850 Watt | |
| Modular Type | Full Modular | |
| Certification | 80 Plus Gold | |
| Fans | Smart Fluid Dynamic Bearing (FDB) | |

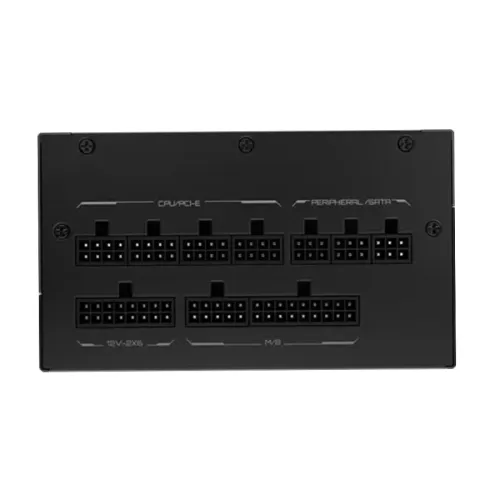

| Others | Fan Type: 135mm FDB Fan. Connectors: ATX/MB 20+4 Pin x 1 : 610mm*1, CPU/EPS 4+4 Pin x 2 : 600mm*2, PCI-e 16 Pin x 1: 700mm*1, PCI-e 6+2 Pin x 4 : 600mm+150mm*2, SATA x 8 : 600mm+150mm+150mm+150mm*2, 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1 | |
| Connectors | ||
| SATA | 8 | |
| Physical Specification | ||
| Dimensions | 150 x 150 x 86mm | |
| Color | Black | |
| Warrnty Information | ||
| Warranty | 10 Year with Burn Case | |

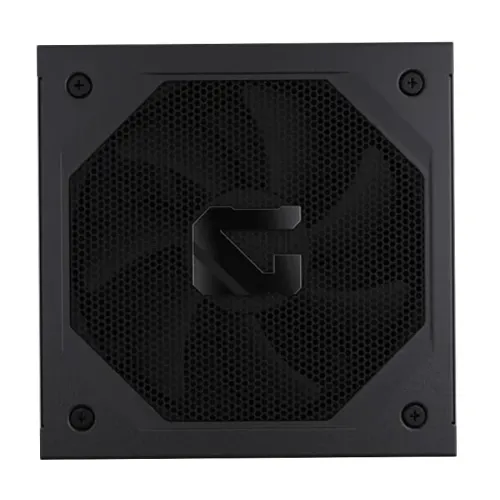

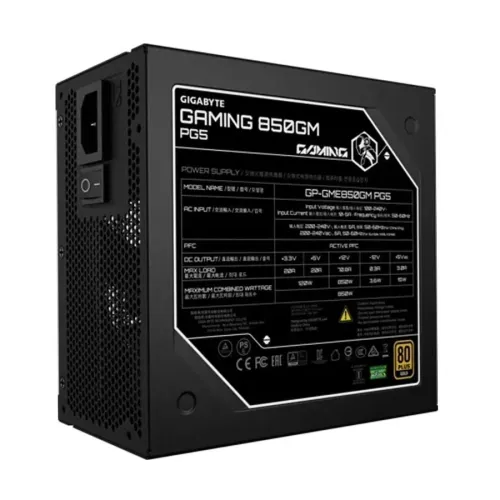

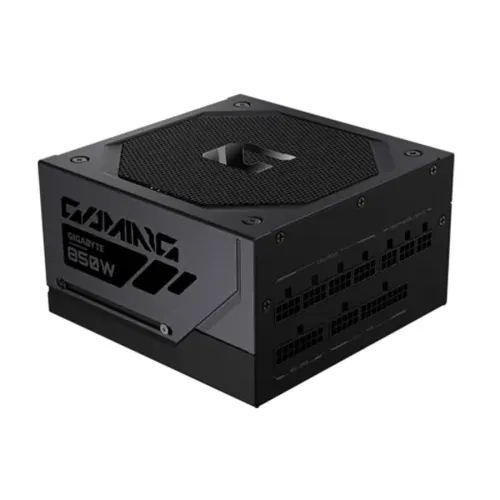

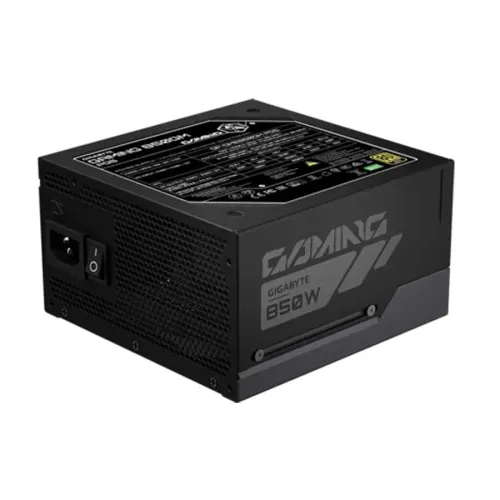

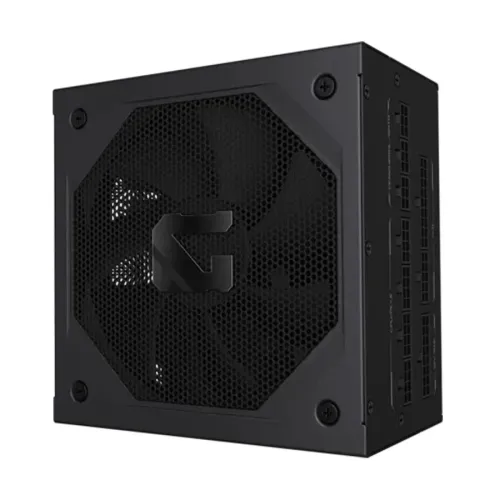

The Gigabyte Gaming 850GM PG5 is a high-output, full modular ATX power supply designed to deliver stable performance for gaming PCs and demanding desktop builds. With a maximum power rating of 850W and 80 Plus Gold efficiency, it helps reduce wasted energy while supporting consistent power delivery—an important factor for systems that run long gaming sessions, content creation workloads, or multi-device setups.
This PSU uses a full modular configuration, allowing you to connect only the cables you need. Compared to non-modular units, this typically improves cable management inside the chassis, which can make airflow planning easier and help keep the interior tidy. It’s especially useful when building compact or airflow-focused setups where routing every unused cable can be inconvenient.
Built for the ATX 12V v3.1 platform, the Gigabyte Gaming 850GM PG5 is intended to work smoothly with modern desktop power requirements. If you’re upgrading a gaming rig or assembling a new system, choosing a PSU that matches current ATX standards can simplify compatibility and help ensure your components receive the power they’re designed for.
Rated for 90% efficiency with an 80 Plus Gold efficiency rating, this power supply is designed to operate efficiently under typical load conditions. Higher efficiency can translate into less heat generation and lower energy waste compared to lower-rated PSUs, which is beneficial for maintaining stable temperatures in your system—particularly during sustained performance tasks.
The Gigabyte Gaming 850GM PG5 includes multiple protection features: OVP, OPP, SCP, UVP, OCP, OTP, NLO, and SIP. These protections are designed to help safeguard your system against common electrical issues such as over-voltage, over-current, short-circuit events, under-voltage conditions, and over-temperature scenarios. For users who want dependable power behavior during intense workloads, this layered protection approach adds peace of mind.
An 850W PSU is a strong choice for mid-to-high end gaming PCs and enthusiast builds that may include power-hungry components. If you plan to run demanding graphics configurations, add storage drives, or expand your system over time, selecting a higher wattage headroom can help you stay within comfortable operating ranges. The black finish also fits well with most PC case aesthetics, keeping the build looking clean and professional.
The provided product information indicates that the price is not mentioned due to stock unavailability. You can check availability on the website or visit nearby showrooms for the latest pricing and purchase options. For office, corporate, or institutional equipment needs, PQS Computers offers customized solutions along with fast delivery and after-sales support through their PQS Care team.
