| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Channel Supported | Dual channel memory architecture | |
| Maximum Memory | 128GB | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI | |

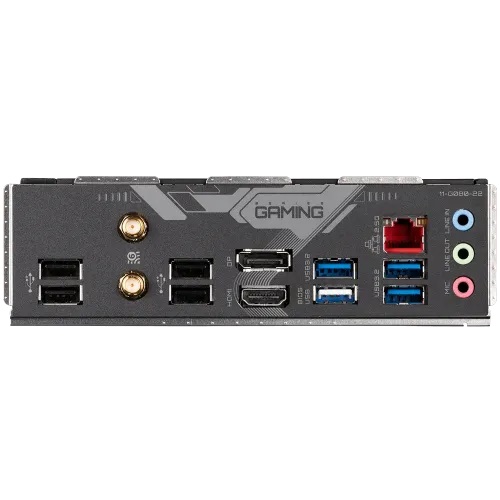

| USB Ports | 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Others | ||
| Special feature | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty | ||
| Warranty | 3 years | |

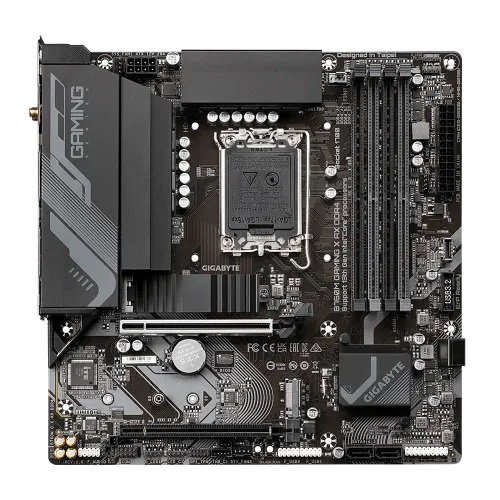

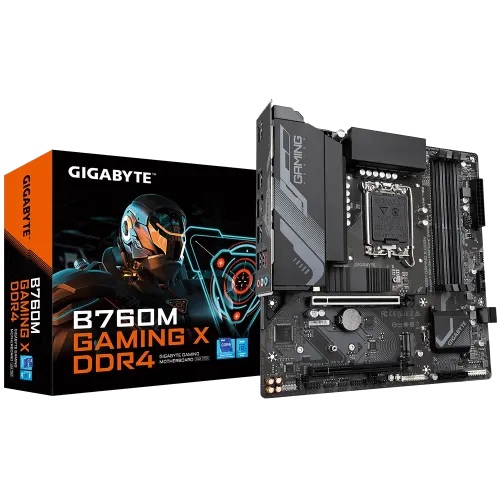

The GIGABYTE B760M GAMING X DDR4 13th and 12th Gen Intel mATX Motherboard is optimized for Intel Core, Pentium Gold, and Celeron processors from the 13th and 12th generations. This motherboard, which has an Intel B760 Express chipset, supports DDR4 memory modules with speeds ranging from 2400 to 5333 MT/s and can carry up to 128GB of system memory through its four DDR DIMM connections. It also has inbuilt Intel HD Graphics and a DisplayPort and HDMI connection for better visual capabilities. High-quality sound is provided by Realtek Audio CODEC and 2/4/5.1/7.1-channel audio capabilities. Furthermore, the Realtek 2.5GbE LAN chip ensures quick and robust network connections. For storage, this motherboard features two M.2 connections and four SATA 6Gb/s connectors, as well as USB Type-C and USB 3.2 Gen 1 ports for communication. You'll have lots of alternatives for connecting your gadgets with 8 USB 2.0/1.1 connections. For increased protection, the board has a front panel header, a front panel audio header, and a Trusted Platform Module header. The GIGABYTE B760M Gaming X DDR4 Intel LGA 1700 Micro-ATX Motherboard is an ideal choice for gamers and PC enthusiasts, since it supports extreme memory profile (XMP) modules and ECC Un-buffered DIMM memory. GIGABYTE B760M GAMING X DDR4 13th and 12th Gen Intel mATX Motherboard comes with 3 years of warranty.
