| Basic Information | ||
| Type | Mini Tower | |
| Material | ABS+SPCC+Tempered Glass | |
| Motherboard Compatibility | M-ITX / M-ATX | |
| Side Panel Window | Tempared Glass | |
| Features | ||
| Cooling System | Top 2×120mm, Side 3×120mm/2×140mm, Bottom 1×120mm (supports radiators up to 360mm on side) | |
| Expansion Slots | 4 | |
| Front Ports | Dual USB 3.0, Gen2 Type-C, Audio/Mic combo | |
| Radiator Support | Side radiator up to 360mm; Bottom radiator 120mm | |
| Fan Support | Top 2×120mm, Side 3×120mm or 2×140mm, Bottom 1×120mm | |
| Pre- Installed Fans | No | |
| Drive Bays | 1×3.5-inch and 1×2.5-inch | |
| I/O Port | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 174mm | |
| Maximum GPU Card Length | 413mm (without top fans) | |
| Maximum PSU Length | 150mm | |
| Physical Specifications | ||
| Dimensions | 296mm × 225mm × 486mm | |
| Weight | 5.8 kg | |
| Color | White | |

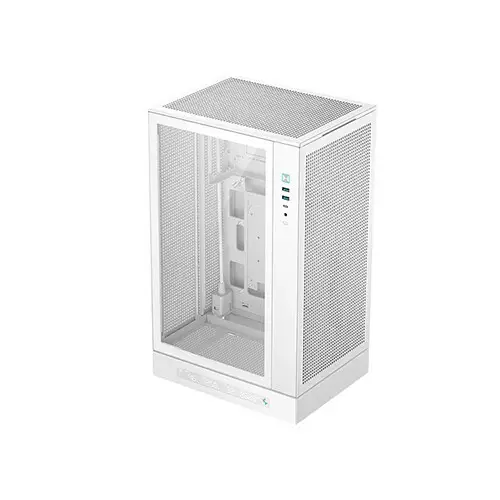

The DeepCool CH270 DIGITAL WH is a compact yet performance-focused M-ATX mini-tower gaming case built for gamers who want a clean white look, strong airflow potential, and real-time system visibility. Designed around Mini-ITX and Micro-ATX motherboard support, it’s an excellent choice for building a balanced gaming rig—whether you’re aiming for a quiet air-cooled setup or a more advanced custom cooling layout. The case combines ABS, SPCC, and tempered glass materials to deliver durability while keeping the interior visually appealing.
With ABS and SPCC construction paired with tempered glass, the CH270 DIGITAL WH offers a sturdy chassis feel and a clear window to showcase your components. This is especially useful for builds with RGB fans, custom sleeved cables, or visible liquid cooling tubing, where the window helps you enjoy the setup rather than hiding it behind a solid panel. Compared to basic plastic-front cases, the tempered glass approach also gives a more premium presentation while still being practical for everyday gaming use.
This case supports M-ITX and M-ATX motherboards, making it well-suited for compact gaming builds that still need room for modern components. If you’re upgrading from a smaller enclosure, the CH270 DIGITAL WH provides a more flexible interior for GPU and cooling clearance than many ultra-compact designs. It’s also a good fit for creators who want a tidy workstation layout—especially when pairing a mid-range GPU with a capable CPU cooler up to 174mm.
A standout feature of the CH270 DIGITAL WH is its digital display panel, which enhances your gaming setup by providing real-time system monitoring. This can help you keep an eye on key performance indicators during long sessions, making it easier to notice temperature trends and system behavior. For users who like to tune fan curves or monitor stability during demanding games, the display adds convenience without requiring you to constantly switch to software.
On the front panel, the case includes dual USB 3.0 ports, a Gen2 Type-C port, and an audio/mic combo. This front I/O selection is ideal for quick access to peripherals such as controllers, external storage, and VR accessories, while the Type-C Gen2 support is especially handy for newer devices. Compared to cases with only older USB standards, this layout improves daily usability—particularly if you frequently plug in headsets, microphones, or high-speed external drives.
Although the CH270 DIGITAL WH does not come with pre-installed fans, it supports a strong cooling configuration for both air cooling and liquid cooling builds. The case supports top 2×120mm fans, side 3×120mm or 2×140mm fans, and a bottom 1×120mm fan. For radiator support, it allows side radiator installation up to 360mm and also supports a bottom 120mm radiator option. This makes the case versatile for different thermal strategies—whether you prefer a straightforward air cooler approach or a more immersive custom water-cooling setup.
The CH270 DIGITAL WH is built to accommodate demanding hardware within a compact footprint. It supports a maximum CPU cooler height of 174mm, helping you fit many popular air coolers and some larger tower-style solutions. For graphics cards, it supports GPU lengths up to 413mm when no top fans are installed, which is useful when you want maximum GPU compatibility. For power supplies, it supports ATX PS2 power supplies with a maximum length of 150mm—helpful for selecting PSUs that fit cleanly without blocking airflow.
For storage, the case provides support for one 3.5-inch drive bay and one 2.5-inch drive bay, giving you flexibility for HDD/SSD combinations. It also includes four expansion slots, which supports a variety of add-in cards such as capture cards, sound cards, or additional connectivity options. If you plan to upgrade over time, this expansion capacity helps you keep the build relevant without needing to replace the entire chassis.
Choose the DeepCool CH270 DIGITAL WH if you want a compact Mini-ITX/Micro-ATX gaming case with a premium tempered glass look, a digital monitoring display, and strong cooling support for both air and radiator setups. It’s particularly suitable for gamers who like to monitor system behavior, builders who want a clean white aesthetic, and users planning a future upgrade path with a capable GPU and a CPU cooler up to 174mm.
