| Basic Information | ||
| Type | Mini Tower | |
| Material | ABS+SPCC+Tempered Glass | |
| With Power Supply | No | |
| Motherboard Compatibility | Mini-ITX / Micro-ATX (Up to Micro-ATX) | |
| Side Panel Window | Tempared Glass | |
| Front Panel | Mesh Design (Front & Top Side) | |
| Features | ||
| Cooling System | No built-in cooling fan; supports up to 6 additional fans | |
| Expansion Slots | 4 | |
| Front Ports | USB 3.0 x 2, Gen 2 Type-C x 1, Audio/Mic x 1 | |
| Radiator Support | Up to 360mm (Top: 120/140/240/280/360mm, Rear: 120mm) | |
| Fan Support | Front: 2 x 120mm; Top: 3 x 120mm / 2 x 140mm; Rear: 1 x 120mm | |
| Pre- Installed Fans | No | |
| Drive Bays | 3.5 inch: 1, 2.5 inch: 1 | |
| I/O Port | Front/Top USB 3.0 x 2, Gen 2 Type-C x 1; Front/Top Audio Port: Audio/Mic x 1 | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 174mm | |
| Maximum GPU Card Length | 388/413mm (No Front fans) | |
| Maximum PSU Length | 150mm | |
| Physical Specifications | ||
| Dimensions | 225 x 312.5 x 438mm | |
| Weight | 5.3 Kg | |
| Color | White | |
| Warranty Information | ||
| Warranty | 1 Year Warranty For Button & Connectors Only (No Warranty For Casing Body / Structure) | |

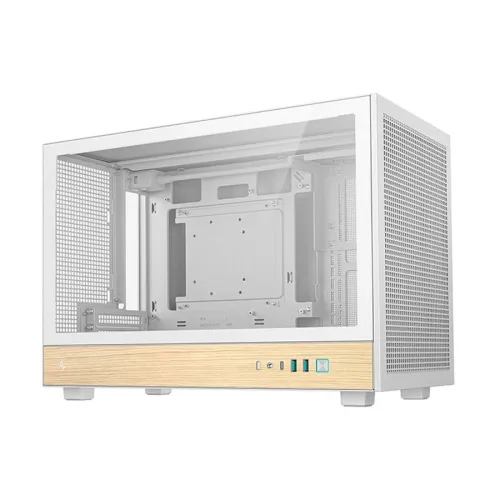

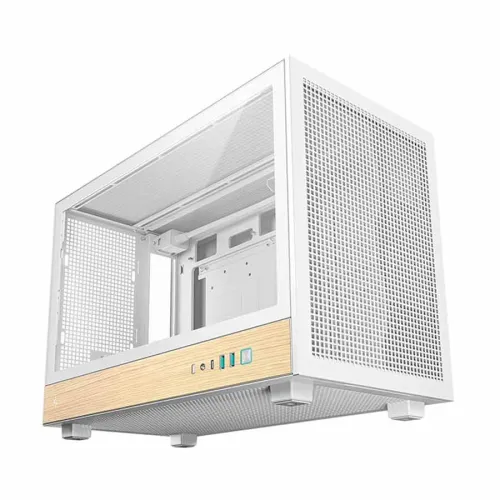

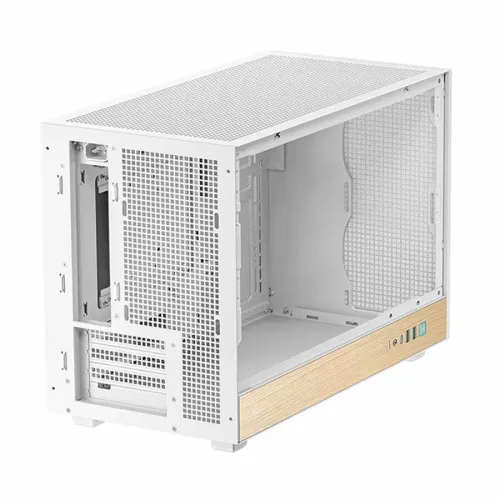

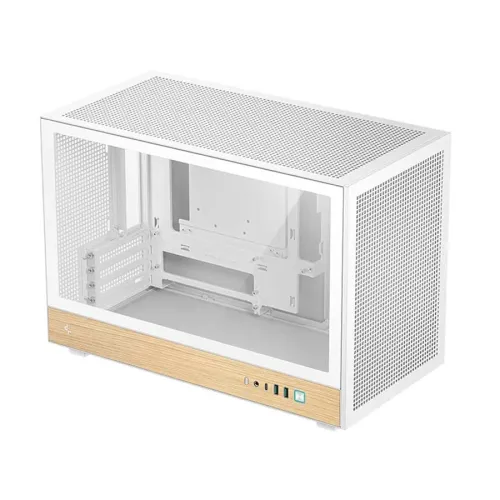

The Deepcool CH260 WOOD WH is a stylish mini tower PC casing designed for compact yet capable gaming builds. Built around a wood-grain themed I/O panel and a tempered glass side window, it lets you showcase your internal components while keeping airflow efficient through a perforated front and top mesh design. If you want a clean, modern look for a Micro-ATX or Mini-ITX setup—without sacrificing cooling potential—this case is a practical choice for everyday gaming, home office productivity, and creator workflows.
This CH260 WOOD WH supports Mini-ITX and Micro-ATX motherboards, with support up to Micro-ATX. It is also designed to meet the needs of rear connector motherboards, offering wider clearance of 29.6mm in the backplane. That extra space helps reduce cable stress and improves build neatness compared to tighter mini cases, making it easier to manage power and data connections—especially when your motherboard has ports positioned toward the rear edge.
The case features a tempered glass window on the side, giving your build a clear view of your GPU, CPU cooler, and internal lighting setup (note: lighting fans are not included). Compared to solid panels, tempered glass improves visual appeal and helps you quickly check component status during troubleshooting or upgrades. The overall build materials are ABS + SPCC + tempered glass, balancing a sturdy chassis feel with a modern, showcase-ready finish.
Although the CH260 WOOD WH does not come with pre-installed cooling fans, it provides strong expansion for airflow. You can mount up to 6 additional fans, with supported fan sizes including Front: 2 x 120mm, Top: 3 x 120mm / 2 x 140mm, and Rear: 1 x 120mm. For users who prefer customizing their cooling, this flexibility makes it easier to tune noise levels and temperatures—such as using quieter 120mm fans at the front and a focused exhaust fan at the rear for balanced pressure.
For liquid cooling enthusiasts, the case supports radiator installation at multiple positions. Radiator support includes Top: 120/140/240/280/360mm, Rear: 120mm, and Front: radiator support is listed as part of Front/Top/Rear support. The maximum radiator support is up to 360mm, which is useful if you want a compact AIO setup while keeping the build clean. This makes the CH260 WOOD WH suitable for gaming systems that benefit from improved thermal headroom during long sessions.
Storage and expansion are well covered for a mini tower chassis. It includes 1 x 3.5-inch drive bay and 1 x 2.5-inch drive bay, which is helpful for pairing a larger HDD with an SSD for faster boot and application loading. The case also provides 4 expansion card slots, supporting a range of graphics cards and add-in cards depending on your build needs. For front connectivity, it offers USB 3.0 x 2 (Gen 2 Type-C x 1) and an Audio/Mic port x 1, making it convenient for headsets and quick device connections.
The CH260 WOOD WH is designed with practical component clearances for compact builds. It supports a maximum CPU cooler height of 174mm, allowing compatibility with many air coolers and liquid cooling solutions. For graphics cards, it supports GPU length of 388mm / 413mm (noting that the longer clearance applies when there are no front fans). The maximum PSU length is 150mm, which helps ensure stable fitment for standard ATX PS2 power supplies. These clearances make the case a good option when you want a compact chassis that still accommodates mainstream performance components.
The case comes in a White body color and uses a windowed tempered glass side panel design. Dimensions are 225 x 312.5 x 438mm and the weight is 5.3kg, making it manageable for desk setups and occasional relocation. Warranty is provided for 1 year, but it is specifically stated as covering button and connectors only (no warranty for the casing body/structure). This is typical for chassis warranties, so it’s wise to handle the tempered glass panel carefully during installation and upgrades.
In Bangladesh, the Deepcool CH260 WOOD WH casing price starts from 8,300 (price may vary based on customization and product availability). When buying, consider your cooling plan first: since no fans are pre-installed, you may want to budget for at least a front intake and rear exhaust configuration. If you plan a liquid cooling build, confirm radiator size compatibility with your intended top or front placement. For a clean, modern build with a tempered glass view and Micro-ATX flexibility, this case offers a strong balance of aesthetics and upgrade potential.
