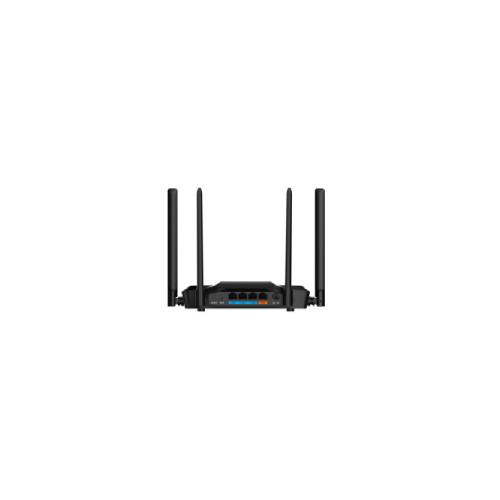

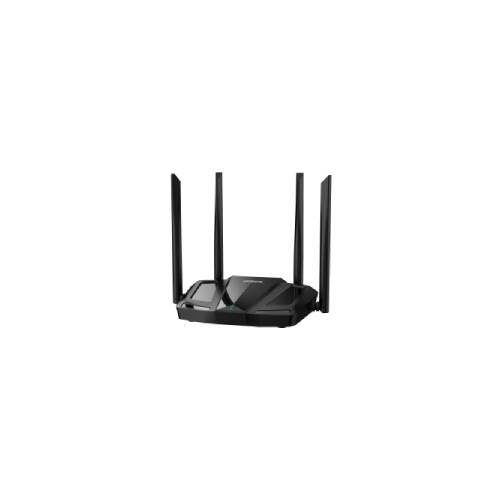

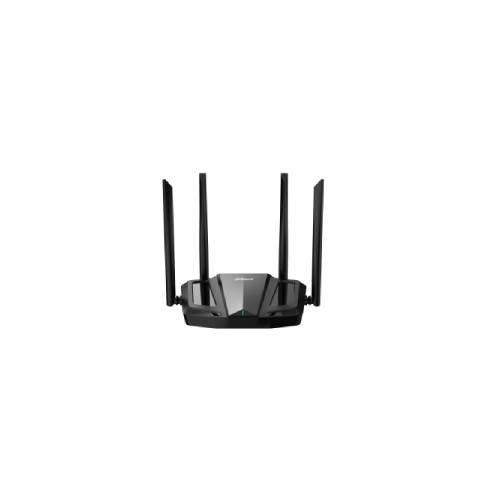

Dahua AC12 300Mbps Wireless Router

Description

Dahua AC12 300Mbps Wireless Router

The Dahua AC12 300Mbps Wireless Router has robust connectivity and innovative characteristics. The Dahua AC12 300Mbps Router features 1×10/100/1000 Mbps WAN and 3×10/100/1000 Mbps LAN ports for dependable wired connectivity. The device has 1 × eSync and 1 × reset buttons and requires a 12 VDC, 1 A power source. The router has DDR 64 MB RAM and a SYS indicator light for performance status. The Dahua Wireless Router is compatible with wireless technologies 2.4 GHz IEEE 802.11b/g/n and 5 GHz IEEE 802.11a/n/ac. The wireless transmission rates are 2.4 GHz: 300 Mbps and 5 GHz: 867 Mbps. It runs at 2.4 GHz (2.400 GHz-2.484 GHz) and 5 GHz (5.150 GHz-5.850 GHz), with channel widths of 20/40 MHz at 2.4 GHz and 20/40/80 MHz at 5 GHz. The highest power output is ≤20 dBm at 2400-2483.5 MHz, ≤23 dBm at 5150-5250 MHz, ≤20 dBm at 5250-5350 MHz, ≤27 dBm at 5470-5725 MHz, and ≤14 dBm at 5725-5850 MHz. The transmission distance exceeds 15 m, with an ideal distance of 7 m. It supports 32 wireless terminals at both 2.4 and 5 GHz. The Dahua AC12 300Mbps Wireless Router allows you to manage your equipment using the web and app. HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, IPv6, ICMP, ARP, TCP, WMM, MAC Filter, and 802.11ac/a are among the network protocols supported. It supports PPPoE, dynamic IP, static IP, router, and relay working modes. Options for encryption include WPA, WPA2, WPA3, WPA/WPA2, WPA2/WPA3 with MAC filtering, and HTTPS security. It supports OFDMA, MU-MIMO, DHCP, and NAT port mapping. But there is no VPN, QoS, DDNS, or Mesh. This Dahua AC12 300Mbps Router supports firmware updates via the web or app, parental control, SSID broadcasting, guest Wi-Fi, and end device administration. It weighs 0.26 kg, consumes 10.5 W at full load, and functions in temperatures ranging from 0 to +40 degrees Celsius. Dimensions: 220 mm × 144 mm × 179 mm for desktop or wall mount installation. The Dahua Wireless Router also features 8 kV air discharge, 4 kV contact discharge, and lightning protection up to 2 kV.
