| Basic Information | ||
| Supported CPU | - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipset | Intel Z790 | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM Slots | |
| Channel Supported | DDR4 | |
| Maximum Memory | 128GB | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Storage | ||
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |

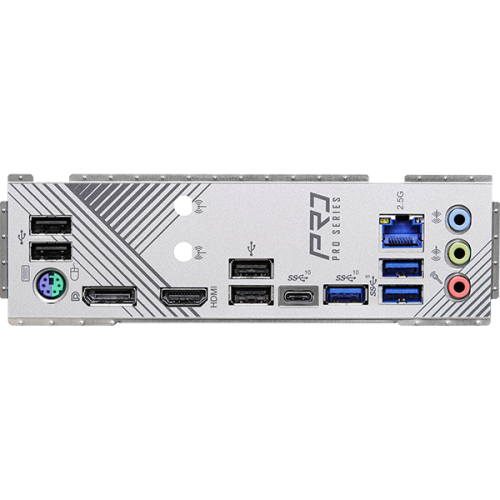

| USB Ports | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection |
|
| DVI-D (s) | 1 x DisplayPort 1.4 | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) TPM (Trusted Platform Module ) |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Special feature | Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 Year Warranty | |
The ASRock Z790 Pro RS/D4 13th Gen and 12th Gen ATX Motherboard Featuring sturdy components and completely smooth power delivery to the CPU, Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. The 6-layer PCB provides stable signal traces and power shapes, delivering lower temperatures and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with the most extreme memory performance! 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperatures and higher energy efficiency for overclocking Dr.MOS is the integrated power stage solution that is optimized for synchronous buck-set-down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers a higher current for each phase, thus providing an improved thermal result and superior performance. Compared to the conventional DIP-style PCIe slot, the SMT-type PCIe slot improves signal flow and maximizes stability at high speeds, a key breakthrough to fully support the lightning speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable of a breathtaking bandwidth of 128 GBps, ready to unleash the full potential of future high-end graphic cards. Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output, or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clears the sound, removes interference noise, and lowers the voice variation. The result is better comprehension and less fatigue. The ASRock Z790 Pro RS/D4 13th Gen and 12th Gen ATX Motherboards have a 3-year warranty.
