| Basic Information | ||
| Supported CPU | - Supports 12th Gen Intel Core Processors (LGA1700) - 9 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel Z690 | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB |
|
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM Slots | |
| Channel Supported | Dual Channel DDR4 Memory Technology | |
| Maximum Memory | 128GB | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Expansion Slots | ||
| Expansion Slots | PCI: - 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))* - 2 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
|
| Storage | ||
| Supported Storage | - 8 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio |
|
| BIOS | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |

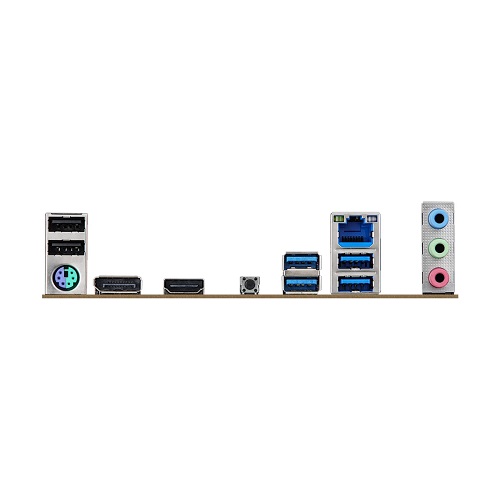

| USB Ports | - 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
|
| Others | ||
| Special feature | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB 2.5G LAN ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Warranty | ||
| Warranty | 3 years | |
The ASRock Z690 PRO RS 12th Gen ATX Motherboard supports 12th Gen Intel Core Processors (LGA1700). With A New Generation Comes New Performance Thresholds And ASrock Aren't Shy When It Comes To Implementing New Technologies. The Z690 RS Pro Boasts A 13 Phase DR. MOS Power Design, Supports DDR4 5000 MHz (OC) Memory, PCIe 5.0, Incredible Storage Support With 2x Gen4x4 M.2 + 1x Gen3x4 M.2, Dragon 2.5G LAN, Type-C Connectivity, HD Audio And Even Includes The ASRock Graphics Card Holder To Reduce Sag And Protects Both Your GPU And Slot. Plus With Polychrome RGB Support You Can Control The Built-In RGB Illumination As Well As Syncing Compatible LED Illuminated Devices Together To Create Your Own Beautiful Lighting Ecosystem Using The Onboard RGB And ARGB Headers. Perfect For Daily Users And Enthusiasts Alike Welcome The Z690 Pro RS. Dr.MOS Is The Integrated Power Stage Solution Which Is Optimized For Synchronous Buck-Set Down Voltage Applications! Compared To Traditional Discrete MOSFETs, It Intelligently Delivers Higher Current For Each Phase, Thus Providing Improved Thermal Result And Superior Performance. Featuring Sturdy Components And Completely Smooth Power Delivery To The CPU. Plus, It Offers Unmatched Overclocking Capabilities And Enhanced Performance With The Lowest Temperature For Advanced Gamers As Well. The 6 Layer PCB Provides Stable Signal Traces And Power Shapes Delivering Lower Temperature And Higher Energy Efficiency For Memory Overclocking! Thus, It's Able To Support The Latest Memory Modules With Most Extreme Memory Performance. 2 Ounce Copper Inner Layers That Provide Stable Signal Traces And Power Shapes! Delivering Lower Temperature And Higher Energy Efficiency For Overclocking. Compared To The Conventional DIP Style PCIe Slot, The SMT Type PCIe Slot Improves Signal Flow And Maximizes Stability Under High Speed, A Key Breakthrough To Fully Support The Lighting Speed Of The Latest PCIe 5.0 Standard. The Latest PCI Express 5.0 Is Capable To Perform A Breathtaking Bandwidth Of 128GBps, Ready To Unleash The Full Potential Of Future High End Graphic Cards. This Motherboard Is Capable Of Accommodating Multiple M.2 Storage Devices, Two Of Which Can Support PCI Express 4.0 M.2 SSD, Capable Of Performing At Twice The Speed Compared To Previous 3rd Generation, Giving A Lightning Fast Data Transferring Experience. The Intelligent 2.5Gb/S LAN Platform Is Built For Maximum Networking Performance For The Demanding Requirements Of Home Networking, Content Creators, Online Gamers And High-Quality Streaming Media. Boost Networking Performance Up To 2.5X The Bandwidth Compared To The Standard Gigabit Ethernet, You’ll Enjoy The Faster And Uncompromised Connectivity Experience For Gaming, File Transfers And Backups. Whether You Are Using Headphones, A Headset, External Or Internal Speakers, Via USB, Wi-Fi, Analog Output Or Even HDMI, Nahimic Audio Offers You The Most Engaging Listening Experience, Vibrant And Rich With Details. The Sound Tracker Is A Visual Indicator That Points Out The Directions From Which Predominant Sounds Are Coming. Each Sound Is Properly Positioned In 360° On A Radar For A Full Immersion During The Game. In Addition To The Built-In RGB Illumination, It Also Features Onboard RGB Headers And An Addressable RGB Header That Allows The Motherboard To Be Connected To Compatible LED Devices Such As Strips, CPU Fans, Coolers, Chassis And So On. Users May Also Synchronize RGB LED Devices Across The Polychrome RGB Sync-Certified Accessories To Create Their Own Unique Lighting Effects. ASRock Z690 PRO RS 12th Gen ATX Motherboard comes with 3 years of warranty.
