| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD X870E | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | 256GB | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) | |
| Graphics | ||
| Graphics | AMD RDNA graphics | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset: 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode, 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode, 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Storage | ||
| Supported Storage | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 2 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s, Realtek RTL8126 | |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/be, Supports 2.4GHz/5GHz/6GHz frequency band, Supports 160MHz channel bandwidth with 6GHz frequency band, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO | |
| Audio | ||
| Audio | 1 x Front Panel Audio Connector | |
| BIOS | ||
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 2 x USB4 Type-C (Rear), 2x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7), Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56), 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front), 6 x USB 2.0 (2 Rear, 4 Front) | |
| Audio | 1 x Front Panel Audio Connector | |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC | |
| Warranty | ||
| Warranty | 3 Years | |

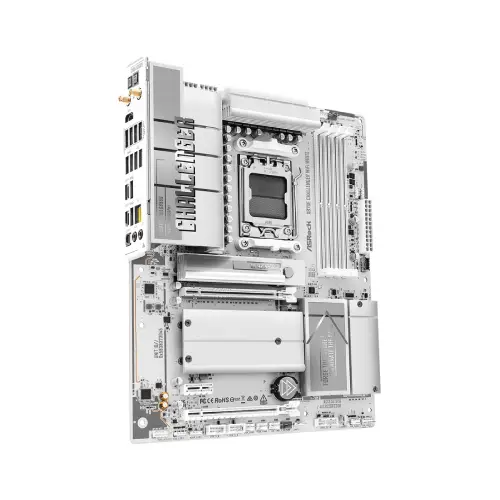

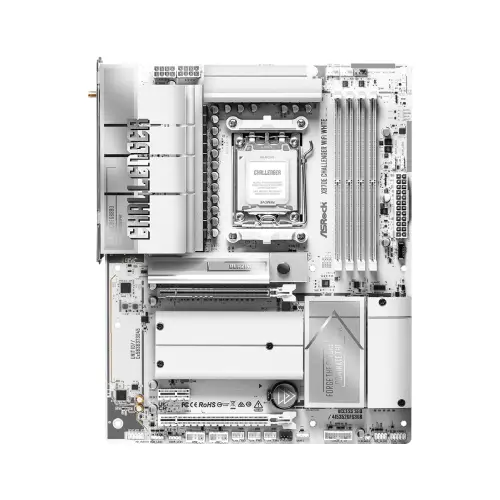

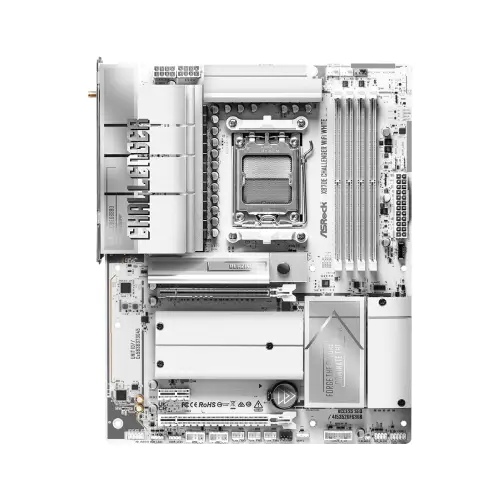

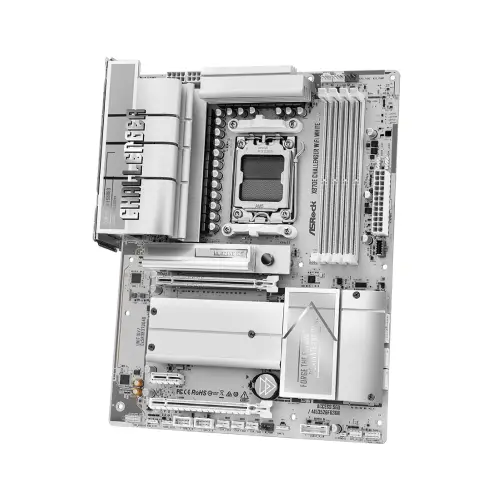

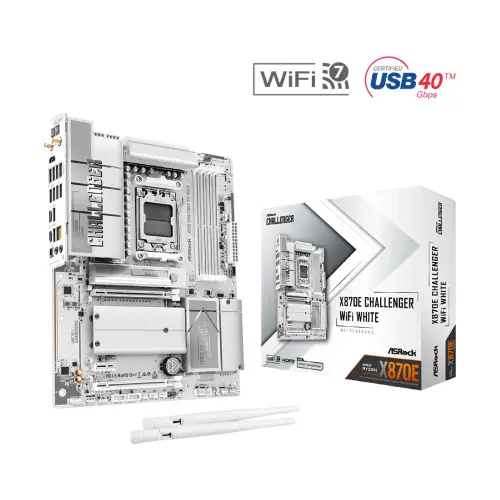

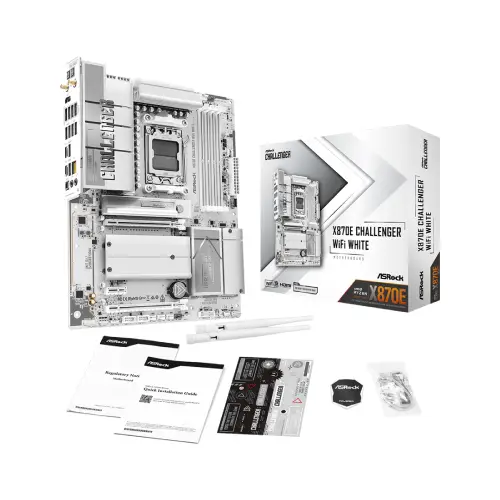

The AsRock X870E Challenger WiFi White ATX AM5 Motherboard is engineered to support AMD Ryzen 9000, 8000, and 7000 series processors via socket AM5. It features a robust 20+2+1 phase power design with 110A SPS for VCore and SOC, paired with exclusive 20K black capacitors for enhanced system stability. For memory, it includes four dual-channel DDR5 DIMM slots supporting speeds up to 8200+ (OC) and a maximum capacity of 256GB, along with XMP and EXPO profiles. Expansion capabilities consist of one PCIe 5.0 x16 slot, one PCIe 3.0 x16 slot, and one PCIe 3.0 x1 slot. Storage options are expansive with one Blazing PCIe Gen5x4 M.2 slot and three Hyper PCIe Gen4x4 M.2 slots, alongside two SATA3 ports. Networking is managed via a 5Gbps LAN port and an 802.11be Wi-Fi 7 module with Bluetooth 5.4. The rear I/O offers dual USB4 Type-C ports (40 Gb/s), multiple USB 3.2 Gen2 and Gen1 ports, and an HDMI output. Audio performance is driven by the Realtek ALC4082 7.1 channel HD codec with Nahimic Audio. This motherboard typically comes with a standard 3-year limited manufacturer warranty.
