| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD X870E | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode, - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Storage | ||
| Supported Storage | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode * Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 2 x SATA3 6.0 Gb/s Connectors, Supports NVMe SSD as boot disks, M2_1 is the first priority for M.2 installation, M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. | |
| Network | ||
| LAN | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s, Realtek RTL8126 | |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/be, Supports 2.4GHz/5GHz/6GHz frequency band, Supports 160MHz channel bandwidth with 6GHz frequency band, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO | |
| Audio | ||
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Individual PCB Layers for R/L Audio Channel, Nahimic Audio | |
| BIOS | ||
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 2 x USB4 Type-C (Rear), 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7), Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56), 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front), 6 x USB 2.0 (2 Rear, 4 Front) | |
| Audio | 1 x Front Panel Audio Connector | |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Internal I/O Ports | 2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s)*, 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.), 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)**, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x Clear CMOS Button, 1 x BIOS Flashback Button, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack), | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC | |
| Warranty | ||
| Warranty | 3 Years | |

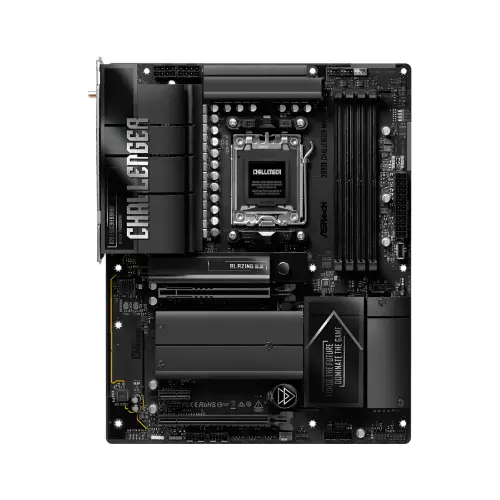

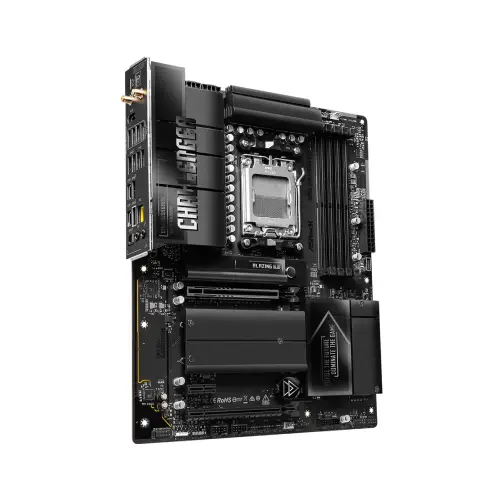

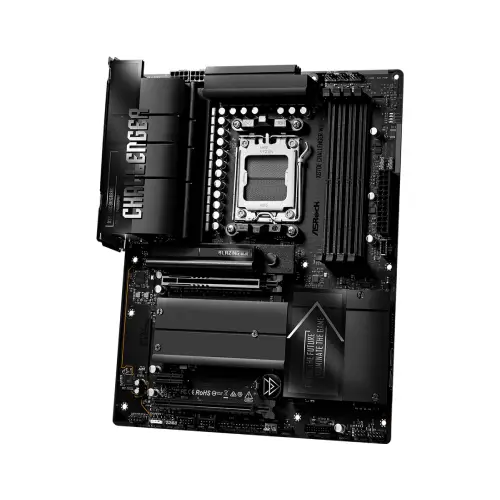

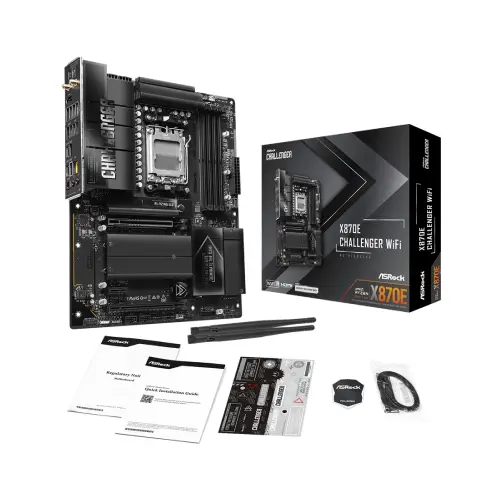

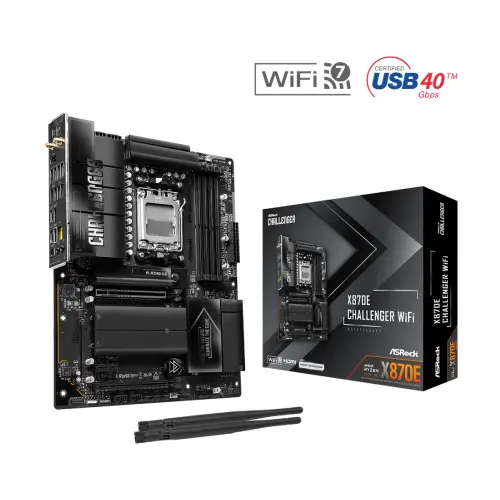

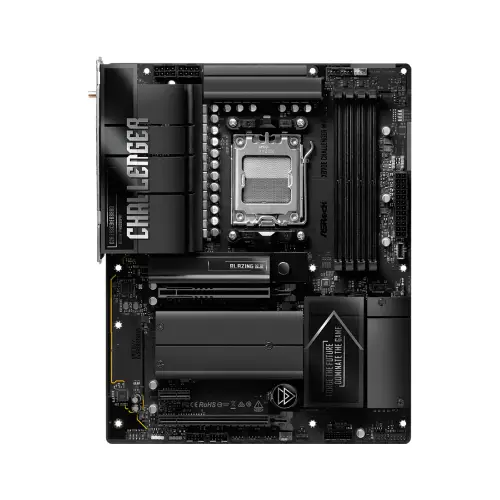

The AsRock X870E CHALLENGER WIFI Ryzen 9000, 8000 and 7000 DDR5 ATX AM5 Motherboard features the AMD X870E chipset with an AM5 socket layout. It incorporates a robust 20+2+1 phase power design utilizing 110A SPS for VCore and SOC, ensuring stable delivery for high-performance processors. For memory, it includes four dual-channel DDR5 DIMM slots supporting unbuffered ECC and non-ECC modules up to 8200+ (OC) with a maximum capacity of 256GB, alongside AMD EXPO and Intel XMP profile support. Expansion capabilities consist of one PCIe 5.0 x16 slot, one PCIe 3.0 x16 slot, and one PCIe 3.0 x1 slot. Storage options feature one Blazing M.2 socket supporting PCIe Gen5x4 and three Hyper M.2 slots supporting PCIe Gen4x4. Networking and connectivity are driven by a Realtek RTL8126 5Gbps LAN port and an 802.11be Wi-Fi 7 module with Bluetooth 5.4. Rear and front I/O options provide dual USB4 Type-C ports running at 40Gbps, USB 3.2 Gen2x2, and HDMI 2.1 graphics output alongside Realtek ALC4082 7.1-channel HD audio with Nahimic Audio. This motherboard typically includes a standard 3-year local manufacturer warranty.
