| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD X870 | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | AMD RDNA graphics | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe , WiFi module - Supports AMD CrossFire, - 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | ||
| Supported Storage | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*, - 2 x SATA3 6.0 Gb/s Connectors, ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control | |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz* frequency band, Supports 160MHz channel bandwidth with 6GHz* frequency band, 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO | |
| Audio | ||
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Impedance Sensing on Rear Out port, Individual PCB Layers for R/L Audio Channel, Nahimic Audio | |
| BIOS | ||
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 2 x USB4 Type-C (Rear) 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2), Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front), 9 x USB 2.0 (6 Rear, 3 Front) | |
| Audio | 1 x Front Panel Audio Connector | |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s), 4 x USB 3.2 Gen1 Type-A Ports, 6 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack) | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC | |
| Warranty | ||
| Warranty | 3 Years | |

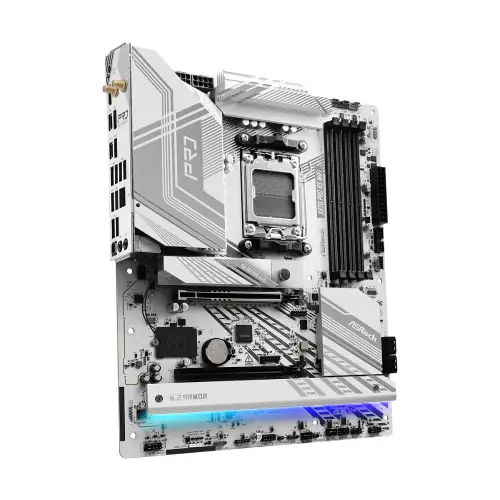

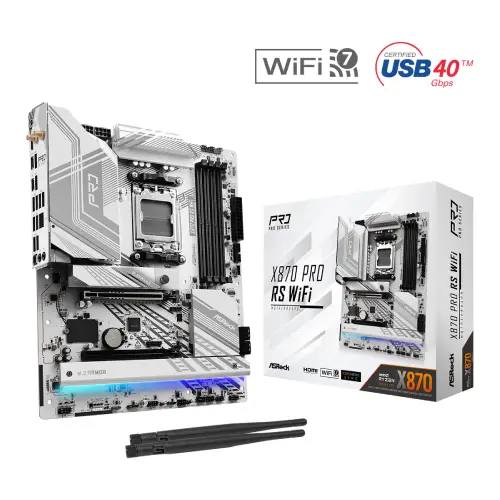

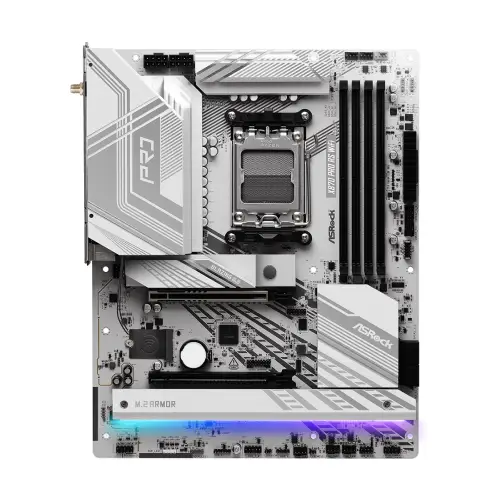

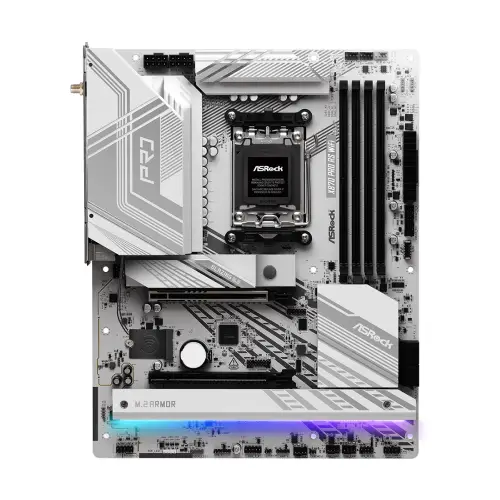

The AsRock X870 Pro RS WiFi Ryzen 9000, 8000 and 7000 Series DDR5 ATX AM5 Motherboard is engineered on the AMD X870 chipset with an AM5 socket, delivering robust compatibility for AMD Ryzen 9000, 8000, and 7000 series processors. It features a 14+2+1 power phase design utilizing 80A Dr.MOS with an enlarged heatsink armor for optimal thermal stability under heavy workloads. For memory, it includes four dual-channel DDR5 DIMM slots supporting up to 256GB of RAM and overclocking speeds exceeding 8000+(OC) MHz, alongside XMP and EXPO profile support. Expansion capabilities are anchored by a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot. Storage options comprise triple M.2 slots—including a Blazing PCIe Gen5x4 socket, a Hyper PCIe Gen4x4 socket, and an Ultra M.2 socket—plus four SATA3 6.0Gb/s connectors. Networking and connectivity are driven by a Realtek 2.5G LAN port, an advanced 802.11be Wi-Fi 7 module with Bluetooth 5.4, dual USB4 Type-C ports (40Gb/s), and a front USB 3.2 Gen2x2 Type-C header. Audio performance relies on the Realtek ALC1220 7.1 channel HD codec enhanced with Nahimic Audio. This ATX form-factor motherboard includes a 3-year manufacturing warranty.
