| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), 6+1+1 Power Phase design, Supports Intel Hybrid Technology, Supports Intel Turbo Boost Max 3.0 Technology | |
| Chipset | Intel H610 | |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm, Solid Capacitor design | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM Slots | |
| Channel Supported | 2 x DDR4 DIMMs Supports Dual Channel, up to 3200 | |
| Graphics | ||
| Graphics | Intel® Xe Graphics Architecture (Gen 12), Dual graphics output: support HDMI and D-Sub ports by independent display controllers, Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz, Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*, Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1) | |
| Storage | ||
| Supported Storage | Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*, 4 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s, 1 x Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE | |
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection | |
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), 4 x USB 2.0 Ports (Supports ESD Protection) | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port, 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), 4 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning) | |
| Warranty | ||
| Warranty | 3 years | |

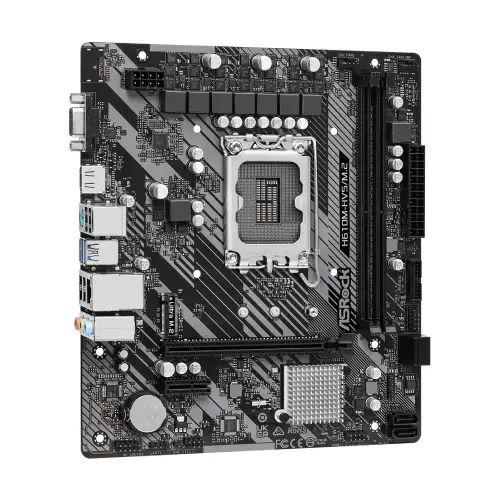

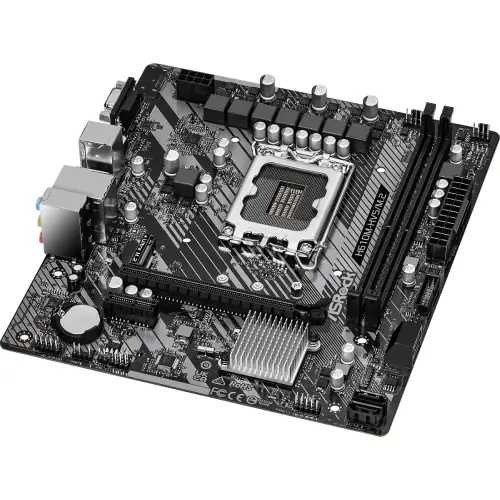

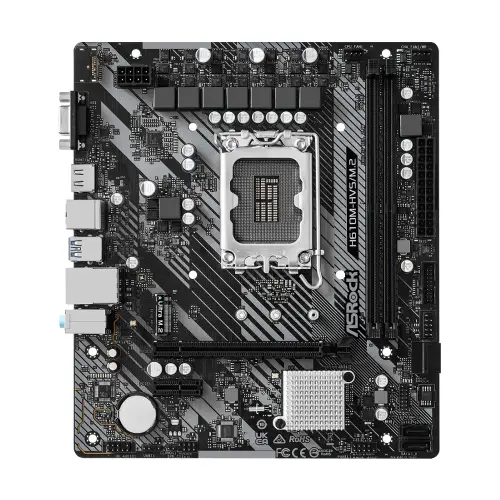

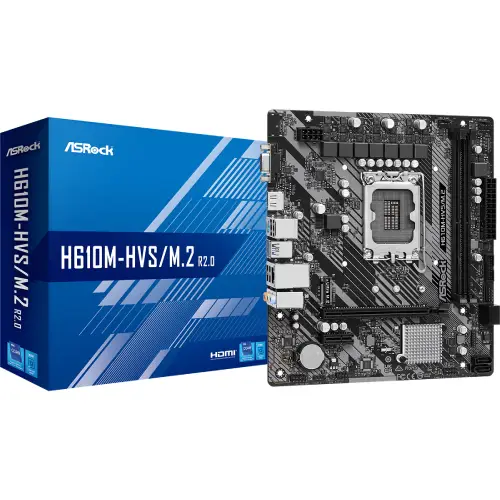

The ASRock H610M-HVS/M.2 R2.0 Micro ATX LGA1700 motherboard supports 14th, 13th, and 12th Gen Intel Core processors using an Intel H610 chipset and a reliable 6+1+1 power phase design. Built with a compact Micro ATX form factor, it features two dual-channel DDR4 DIMM slots supporting up to 64GB of memory at speeds reaching 3200MHz. For expansion and storage, the board incorporates one PCIe 4.0 x16 slot, one PCIe 3.0 x1 slot, and an Ultra M.2 socket supporting PCIe Gen3 x4 speeds up to 32Gb/s alongside four SATA3 6.0 Gb/s connectors. Visual outputs include HDMI supporting 4K at 60Hz and D-Sub ports driven by Intel Xe Graphics Architecture. Audio performance is managed by the Realtek ALC897 7.1 channel HD audio codec, complemented by a Realtek Gigabit LAN controller. Additional hardware strengths include premium power chokes, a sapphire black PCB layout, and full spike protection across USB, audio, and LAN ports. This hardware comes backed by a standard 3-year manufacturer warranty.
