| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Supports Intel® Hybrid Technology, Supports Intel® Turbo Boost Max 3.0 Technology | |
| Chipset | Intel H610 | |
| Form Factor | Micro ATX Form Factor: 8.66-in x 8-in, 22 cm x 20.3 cm, Solid Capacitor design | |
| Memory | ||
| Number of Memory Slots | 2 x DDR5 DIMM Slots: Dual Channel DDR5 Memory Technology, 14th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*, 13th and 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*, Max. capacity of system memory: 96 GB, Supports Intel® Extreme Memory Profile (XMP) 3.0 1 x DDR4 DIMM Slot, Supports DDR4 non-ECC, un-buffered memory up to 3200*, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 32 GB, Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| Channel Supported | Dual Channel DDR5 | |
| Graphics | ||
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz, 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* | |
| Storage | ||
| Supported Storage | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*, - 4 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | - Gigabit LAN 10/100/1000 Mb/s, - Realtek 8111H | |
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| USB Ports | - 4 x USB 3.2 Gen1 (2 Rear, 2 Front), - 6 x USB 2.0 (4 Rear, 2 Front) | |
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | 1 x Front Panel Audio Connector | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 1 x I/O Shield | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning)* UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash | |
| Warranty | ||
| Warranty | 3 Years | |

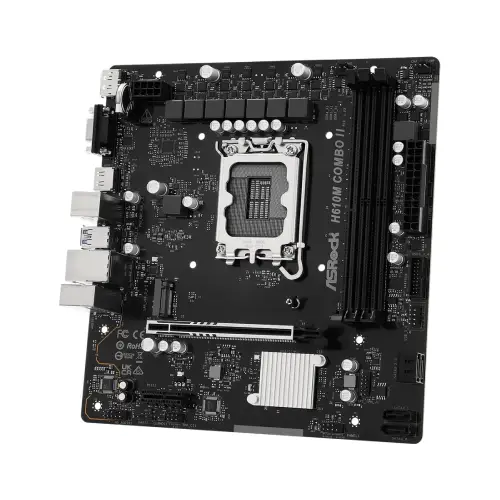

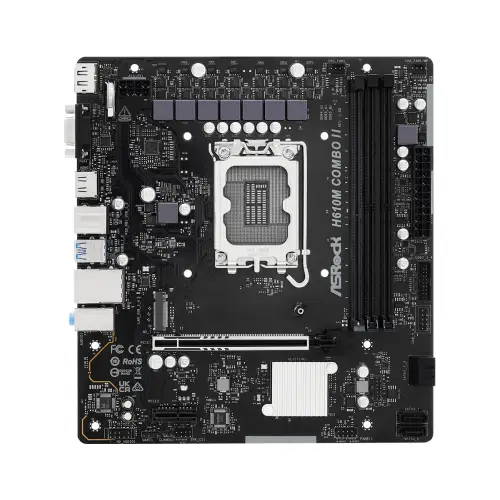

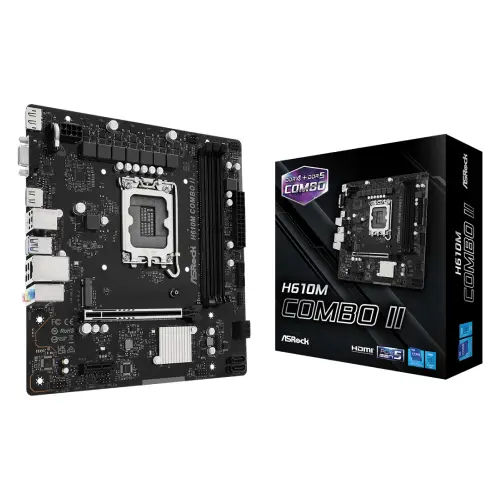

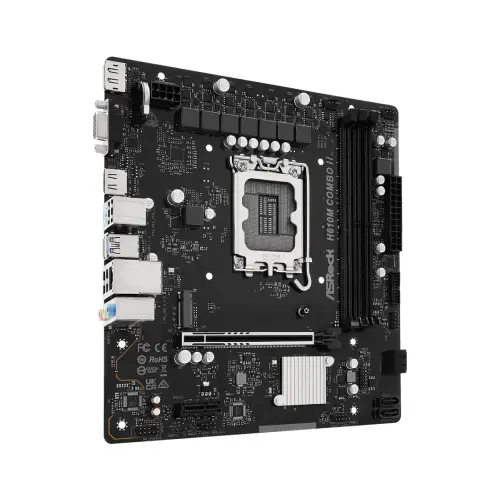

The ASRock H610M COMBO II DDR4 And DDR5 LGA1700 Motherboard is engineered to support Intel 14th, 13th, and 12th Gen Core processors on the Intel H610 chipset. Built with a Micro ATX form factor, it features an innovative hybrid memory layout with 2 DDR5 DIMM slots (supporting up to 96GB up to 5600MHz) and 1 DDR4 DIMM slot (supporting up to 32GB up to 3200MHz) for versatile configuration flexibility. Power delivery is managed by a stable 6+1+1 power phase design. For expansion and storage, it includes 1 PCIe 5.0 x16 slot, 1 PCIe 3.0 x1 slot, 1 Ultra M.2 socket (PCIe Gen3 x4 supporting 32Gb/s speeds), and 4 SATA3 6.0 Gb/s ports. Connectivity options feature Realtek Gigabit LAN, Realtek ALC897 7.1 channel HD audio codec, alongside multiple USB 3.2 Gen1 and USB 2.0 ports. Video outputs include HDMI, DisplayPort, and D-Sub. This motherboard comes with a standard 3-year manufacturing warranty.
