| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200), 5 Power Phase design, Supports Intel Turbo Boost Max 3.0 Technology | |
| Chipset | Intel H510 | |
| Form Factor | Micro ATX | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM Slots | |
| Channel Supported | Dual Channel DDR4 Memory Technology | |
| Maximum Memory | 64GB | |
| Supported Memory | Supports Intel Extreme Memory Profile (XMP) 2.0 | |
| Graphics | ||
| Graphics | 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics | |
| Expansion Slots | ||
| Expansion Slots | 11th Gen Intel Core Processors, 1 x PCI Express 4.0 x16 Slot*, 10th Gen Intel Core Processors, 1 x PCI Express 3.0 x16 Slot*, 1 x PCI Express 3.0 x1 Slot | |
| Storage | ||
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug | |
| Network | ||
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE | |
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec), Supports Surge Protection | |
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front) | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | I/O Shield, 2 x SATA Data Cables | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning) | |
| Warranty | ||
| Warranty | 3 years | |

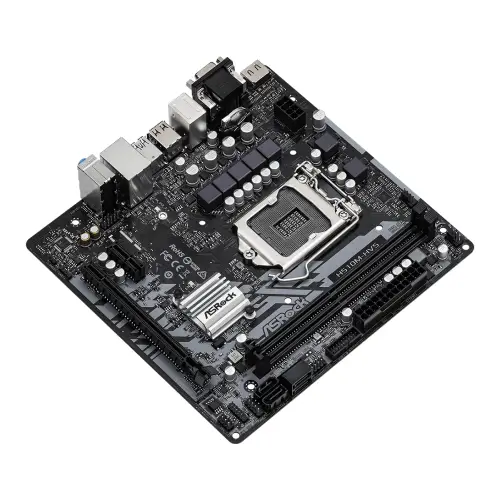

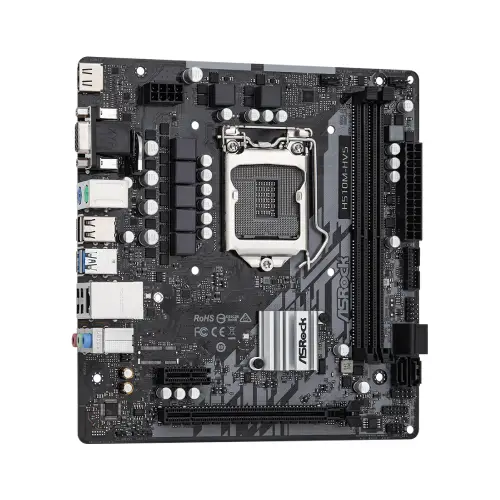

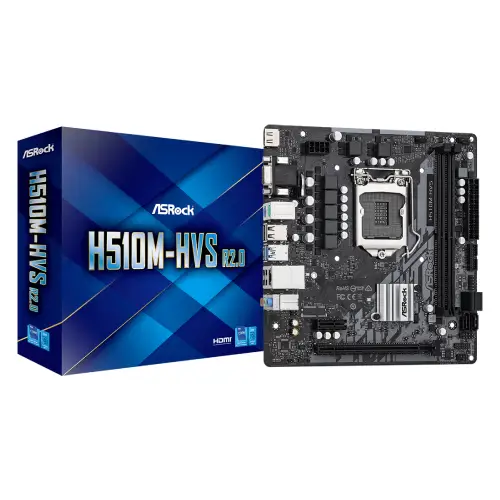

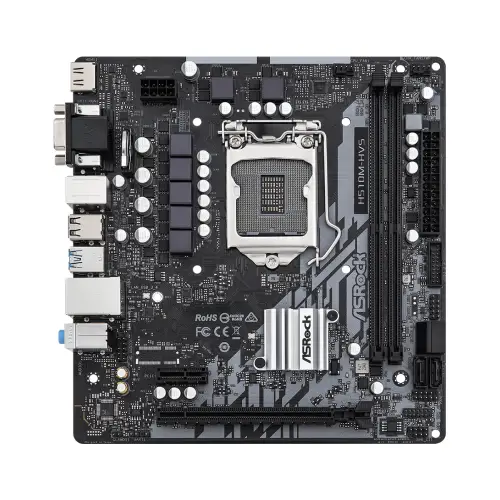

The ASRock H510M-HVS R2.0 Micro ATX DDR4 LGA1200 Motherboard is engineered to support 10th and 11th Gen Intel Core processors, featuring an Intel H510 chipset and a reliable 5-power phase design. This motherboard includes two dual-channel DIMM slots capable of accommodating up to 64GB of DDR4 memory with speeds reaching 3200MHz. For expansion and storage, it offers one PCI Express 4.0 x16 slot (for 11th Gen CPUs), one PCI Express 3.0 x1 slot, and four SATA3 6.0 Gb/s ports. Visual outputs are managed through dual display controllers supporting HDMI 2.0 and D-Sub ports. Audio performance is driven by the 7.1 CH HD Realtek audio codec, complemented by a Realtek Gigabit LAN controller. Built with ASRock Super Alloy technology, Sapphire Black PCB, and Full Spike Protection, it ensures enhanced hardware longevity. This product typically comes with a standard 3-year limited hardware manufacturer warranty.
