| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | Micro ATX | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, - 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | ||
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Phantom Gaming LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control, | |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz* frequency band, Supports 160MHz channel bandwidth with 6GHz frequency band, 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO | |
| Audio | ||
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Impedance Sensing on Rear Out port, Individual PCB Layers for R/L Audio Channel, Nahimic Audio | |
| BIOS | ||
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2), Chipset: 1 x USB 3.2 Gen1 Type-C (Front), 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front), 8 x USB 2.0 (4 Rear, 4 Front) | |
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | 1 x Front Panel Audio Connector | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s), 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s), 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (Phantom Gaming Tuning), ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC | |
| Warranty | ||
| Warranty | 3 Years | |

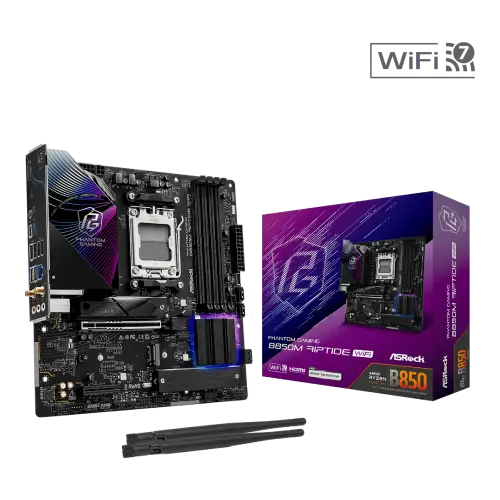

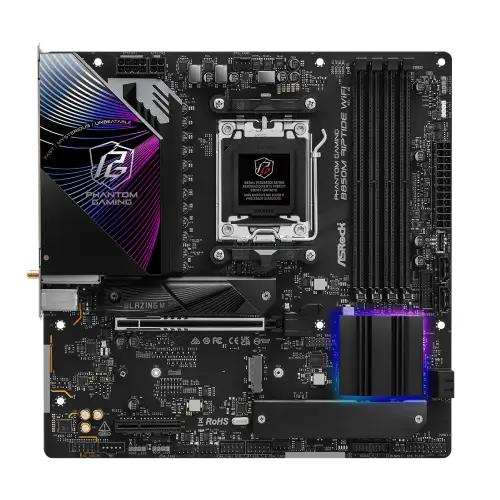

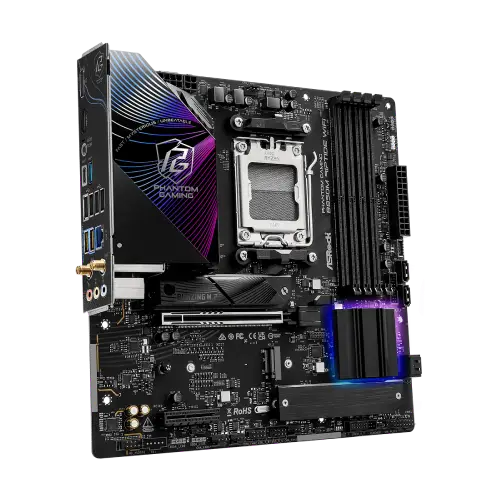

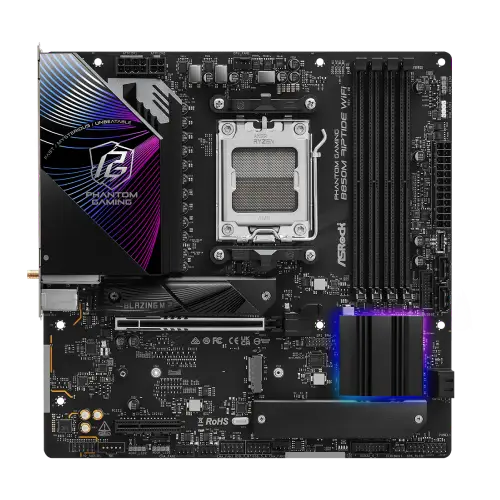

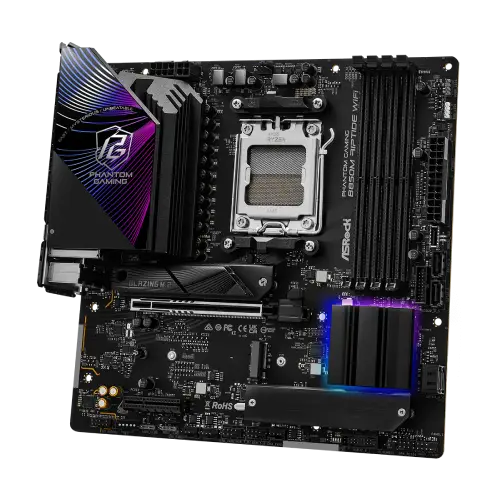

The ASRock B850M Riptide WiFi Ryzen 9000, 8000 and 7000 Series DDR5 AM5 Motherboard is an advanced micro-ATX gaming motherboard built on the AMD B850 chipset. It features a robust 12+2+1 power phase design with Dr.MOS for enhanced stability. The board supports up to 256GB of dual-channel DDR5 memory with overclocking speeds reaching 8000+ MHz. For expansion and storage, it integrates a PCIe 5.0 x16 slot alongside multiple M.2 slots, including a Blazing PCIe Gen5x4 socket. Networking capabilities are exceptionally modern, featuring a Realtek 2.5G LAN port and a high-speed Wi-Fi 7 module with Bluetooth 5.4. Audio performance is driven by the Realtek ALC1220 7-channel codec integrated with Nahimic Audio. Display outputs include HDMI 2.1 and DisplayPort 1.4 ports supporting high-resolution configurations. Complete with a pre-installed I/O shield and an array of USB connectivity options, this hardware comes backed by a standard 3-year manufacturer warranty for long-term reliability
