| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Supports Intel® Hybrid Technology, Supports Intel® Turbo Boost Max 3.0 Technology, Supports Intel® Thermal Velocity Boost (TVB), Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | Intel B760 | |
| Form Factor | Micro ATX Form Factor | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12), 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz, 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*, Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)*, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT), - 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | ||
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, - 4 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control | |
| Wireless | 802.11ax Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax, Supports Dual-Band 2x2 with extended 6GHz band support*, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3 + High speed class II, Supports MU-MIMO | |
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio | |
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 (4 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) | |
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s), 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC* | |
| Wireless Communication module | 802.11ax Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax, Supports Dual-Band 2x2 with extended 6GHz band support*, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3 + High speed class II, Supports MU-MIMO | |
| Warranty | ||
| Warranty | 3 Years | |

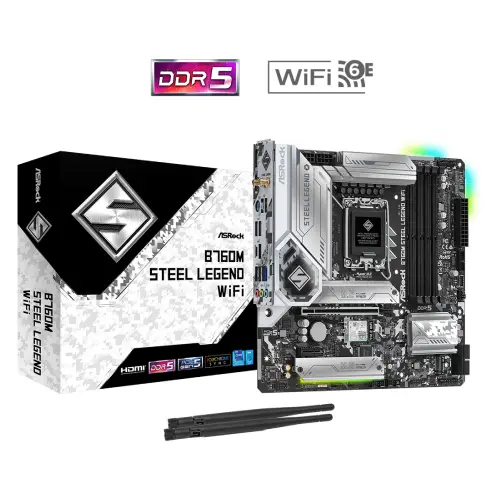

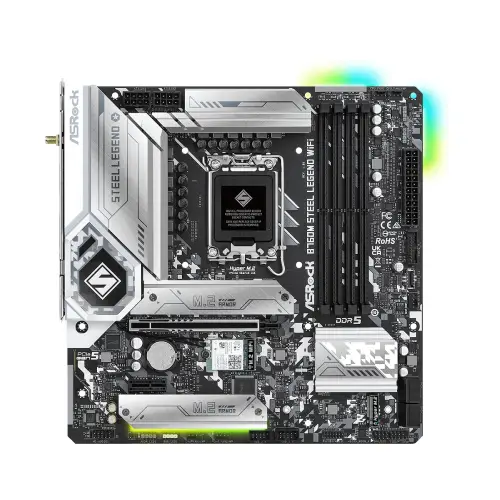

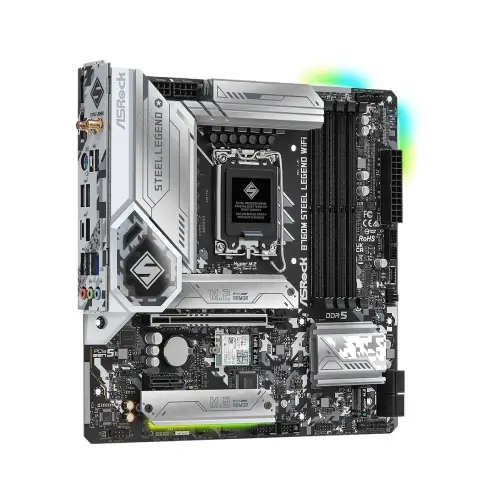

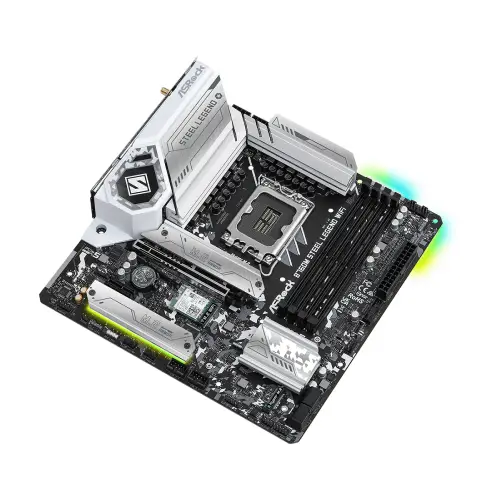

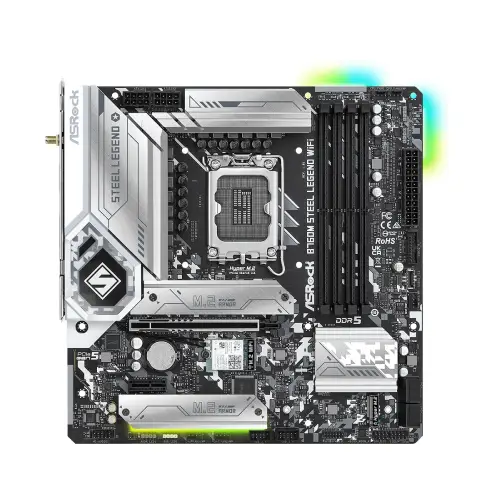

The AsRock B760M STEEL LEGEND WIFI DDR5 LGA1700 motherboard is engineered with an Intel B760 chipset supporting 14th, 13th, and 12th Gen Intel Core processors. It features a robust 12+1+1 power phase layout with Dr.MOS for VCore and GT, paired with a 6-layer 2oz copper PCB to ensure stable delivery. For memory, it includes four dual-channel DDR5 DIMM slots supporting up to 7200+ MHz (OC) and a maximum capacity of 256GB, complete with XMP 3.0 and protective circuitry. Expansion capabilities consist of one reinforced steel PCIe 5.0 x16 slot utilizing surface-mount technology for high-speed signal integrity, alongside one PCIe 4.0 x1 slot and a Key-E M.2 socket for wireless modules. Storage options feature three Hyper M.2 PCIe Gen4x4 slots and four SATA3 ports. Networking is handled by a Dragon 2.5G LAN port and an 802.11ax Wi-Fi 6E module with Bluetooth 5.3. Rear and front input-output panels include high-speed USB 3.2 Gen2 Type-A and Type-C ports, HDMI 2.1, and DisplayPort 1.4 graphics outputs. Audio performance is driven by the Realtek ALC897 7.1-channel codec integrated with Nahimic Audio. This motherboard comes with a standard 3-year manufacturing warranty.
