| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Supports Intel® Hybrid Technology, Supports Intel® Turbo Boost Max 3.0 Technology, Supports Intel® Thermal Velocity Boost (TVB), Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | Intel B760 | |
| Form Factor | Micro ATX Form Factor | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | 256GB | |
| Supported Memory | Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12) | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*, Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT), - Supports AMD CrossFire | |
| Storage | ||
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*, - 4 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control | |
| Wireless | 802.11axe Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe, Supports Dual-Band 2x2 160MHz with extended 6GHz band* support, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3 + High speed class II, Supports MU-MIMO, Supports Killer LAN Software | |
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio | |
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) | |
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, Killer Control Center, ASRock Polychrome SYNC | |
| Warranty | ||
| Warranty | 3 Years | |

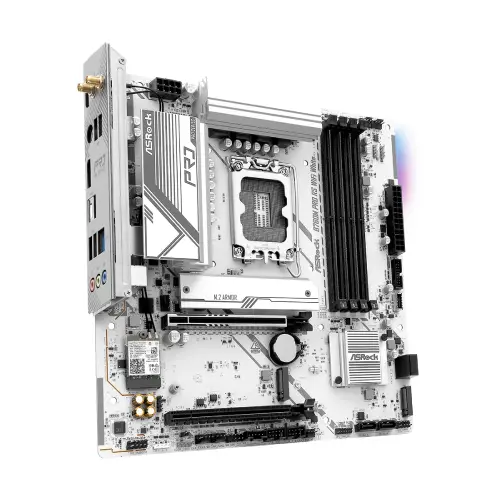

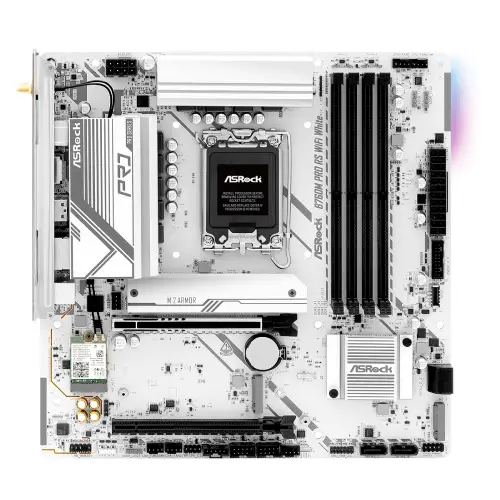

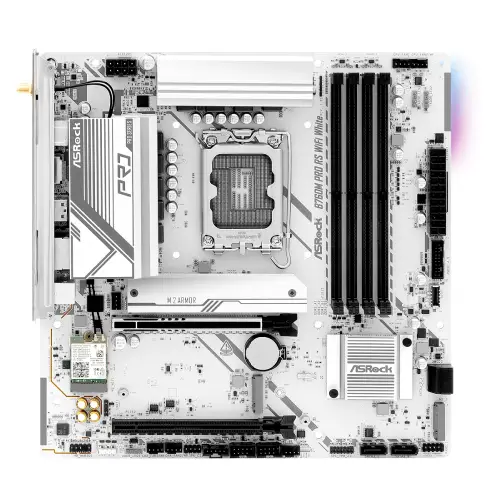

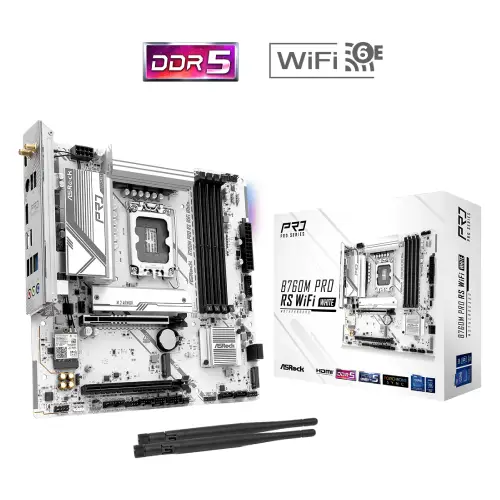

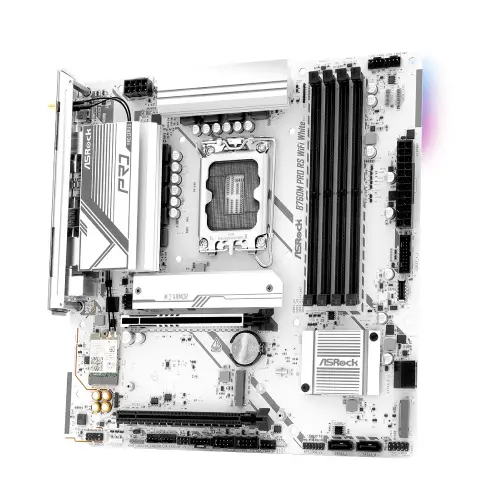

The ASRock B760M Pro RS WiFi White DDR5 Intel 14th, 13th and 12th Gen Micro ATX LGA1700 Motherboard is engineered with an Intel B760 chipset and an LGA1700 socket supporting 14th, 13th, and 12th Gen Intel Core processors. Built with a striking white aesthetic, it features a 7+1+1 power phase design utilizing Dr.MOS for stable VCore and GT delivery. For memory, it includes 4 dual-channel DDR5 DIMM slots supporting speeds up to 7200+(OC) MHz and a maximum capacity of 256GB. Expansion capabilities consist of one PCIe 5.0 x16 slot, one PCIe 3.0 x16 slot, and an M.2 Key-E slot reserved for a WiFi module. Storage options are extensive, offering three Hyper M.2 PCIe Gen4x4 slots and four SATA3 6Gb/s ports. Networking is handled via Dragon 2.5G LAN alongside an integrated Killer Wi-Fi 6E module and Bluetooth. Audio performance is driven by the Realtek ALC897 7.1 CH HD codec featuring Nahimic Audio. Rear and front input/output connectivity includes high-speed USB 3.2 Gen1 Type-C and Type-A ports, alongside HDMI 2.1 and DisplayPort 1.4 outputs. This micro-ATX motherboard comes backed by a standard 3-year manufacturing warranty.
