| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Supports Intel Hybrid Technology, Supports Intel Turbo Boost Max 3.0 Technology, Supports Intel Thermal Velocity Boost (TVB), Supports Intel Adaptive Boost Technology (ABT) | |
| Chipset | Intel B760 | |
| Form Factor | Micro ATX Form Factor | |
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM Slots | |
| Channel Supported | Dual Channel DDR4 Memory Technology | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated., Intel Xe Graphics Architecture (Gen 12), 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| Max Shared Memory | 128GB | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*, Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*, - 1 x PCIe 4.0 x1 Slot (PCIE2)*, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT), - Supports AMD CrossFire | |
| Storage | ||
| Supported Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*, 4 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software: Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control | |
| Wireless | 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe, Supports Dual-Band 2x2 160MHz with extended 6GHz band* support, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3 + High speed class II, Supports MU-MIMO, Supports Killer LAN Software | |
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports | |
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | 1 x Front Panel Audio Connector | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, Killer Control Center, ASRock Polychrome SYNC* | |
| Wireless Communication module | 802.11axe Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe, Supports Dual-Band 2x2 160MHz with extended 6GHz band* support, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3 + High speed class II, Supports MU-MIMO, Supports Killer LAN Software | |
| Warranty | ||
| Warranty | 3 years | |

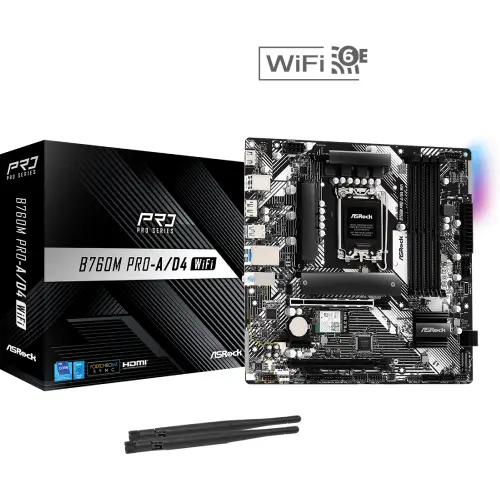

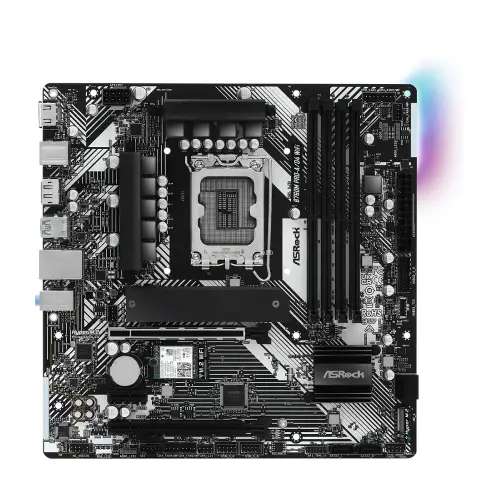

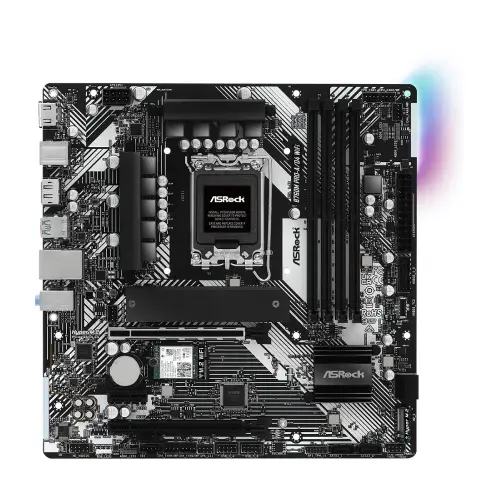

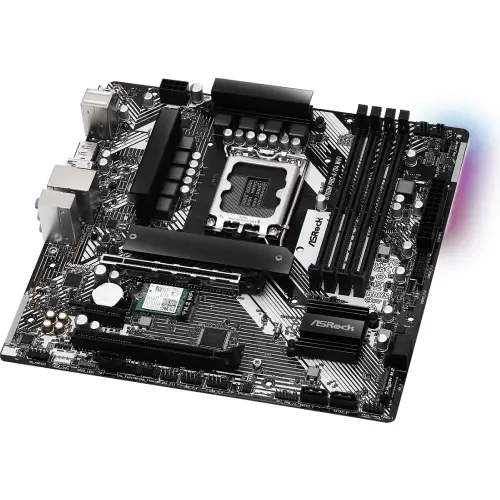

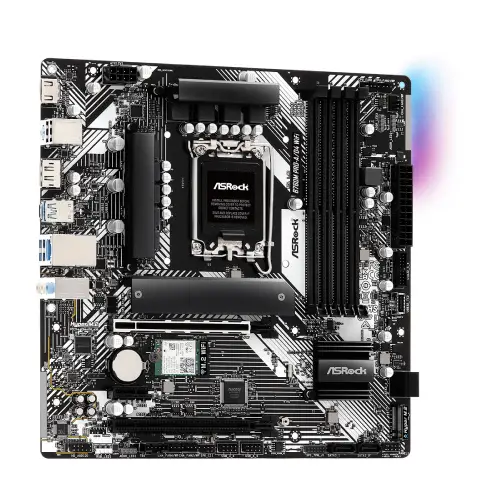

The AsRock B760M PRO-A/D4 WIFI DDR4 Intel 14th, 13th and 12th Gen LGA1700 Motherboard supports LGA1700 socket processors with an Intel B760 chipset. It features a 7+1+1 power phase design with Dr.MOS for VCore and GT. For memory, it includes four dual-channel DDR4 DIMM slots supporting up to 128GB capacity and speeds reaching 5333+ MHz via overclocking. Storage expansion options consist of two Hyper M.2 slots (PCIe Gen4x4) and four SATA3 6Gb/s ports. Expansion slots include two PCIe 4.0 x16 slots and one PCIe 4.0 x1 slot. Networking capabilities are driven by Dragon 2.5G LAN alongside a Killer Wi-Fi 6E module and Bluetooth. Audio performance relies on the Realtek ALC897 7.1 channel HD audio codec. Connectivity includes multiple USB 3.2 Gen1 Type-C and Type-A ports alongside HDMI and DisplayPort outputs for integrated graphics. This motherboard typically comes with a standard 3-year manufacturer warranty.
