| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700), Supports Intel® Hybrid Technology, Supports Intel® Turbo Boost Max 3.0 Technology, Supports Intel® Thermal Velocity Boost (TVB), Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | Intel B760 | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12) | |
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*, Chipset: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT), Supports AMD CrossFire | |
| Storage | ||
| Supported Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*, 4 x SATA3 6.0 Gb/s Connectors | |
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Phantom Gaming LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control | |
| Wireless | 802.11ax Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax, Supports Dual-Band 2x2 with extended 6GHz band support*, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3 + High speed class II, Supports MU-MIMO | |
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 1 x USB 3.2 Gen1 Type-C (Rear), 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) | |
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (Phantom Gaming Tuning), ASRock Phantom Gaming LAN Software* | |
| Warranty | ||
| Warranty | 3 Years | |

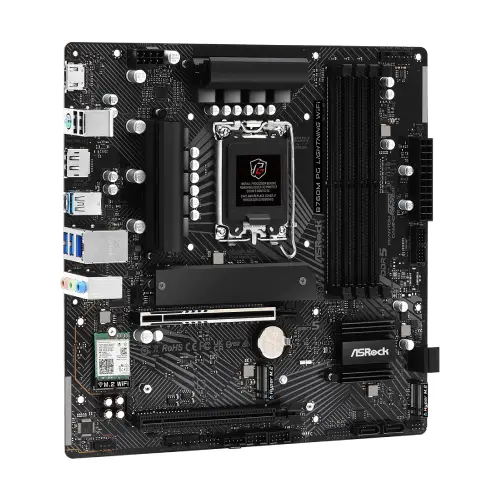

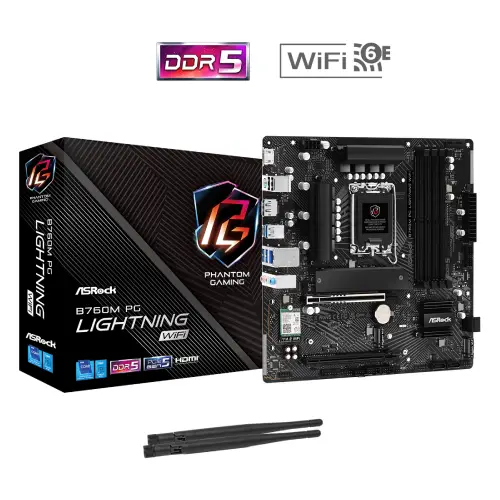

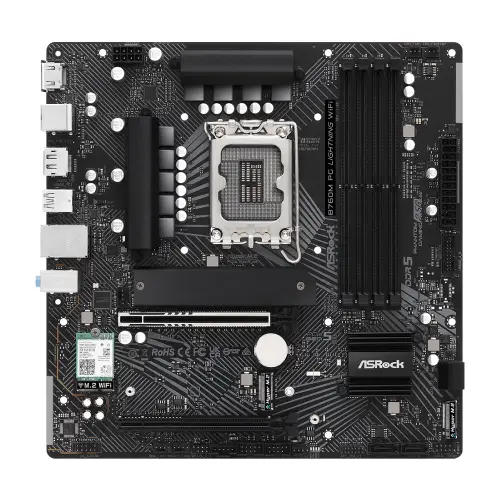

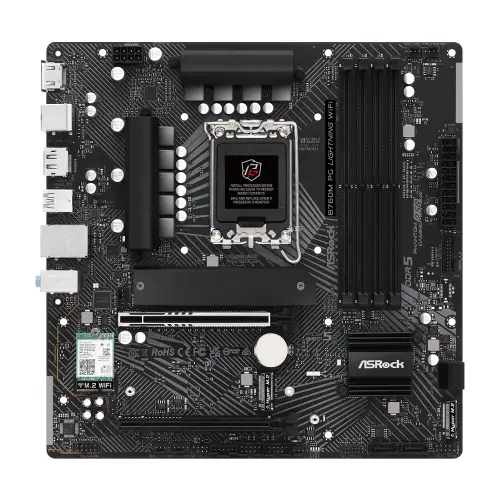

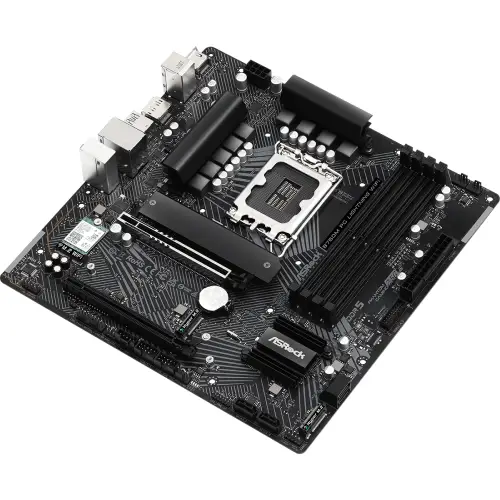

The ASRock B760M PG LIGHTNING WIFI DDR5 Micro ATX LGA1700 Motherboard supports 14th, 13th, and 12th Gen Intel Core processors utilizing an Intel B760 chipset. It features a 7+1+1 power phase design with Dr.MOS for stable power delivery. The board includes four dual-channel DDR5 DIMM slots supporting up to 256GB of memory and overclock speeds exceeding 7200+ MHz. For expansion and graphics, it offers one PCIe 5.0 x16 slot with surface-mount technology, one PCIe 3.0 x16 slot, and multiple display outputs via HDMI and DisplayPort. Storage options comprise three Hyper M.2 PCIe Gen4x4 sockets and four SATA3 ports. Networking is handled by a Dragon 2.5G LAN port alongside an 802.11ax Wi-Fi 6E module and Bluetooth 5.3. Audio performance utilizes the Realtek ALC897 7.1 CH HD codec with Nahimic Audio. Rear and front I/O interfaces include USB 3.2 Gen1 Type-C and Type-A ports. This model comes with a standard 3-year limited manufacturer warranty.
