| Basic Information | ||
| Supported CPU | Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipset | Intel B760 | |
| Form Factor | ATX 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|
| Memory | ||
| Number of Memory Slots | 4 DIMMs | |
| Channel Supported | DDR5 | |
| Maximum Memory | 192GB | |
| Supported Memory | Dual Channel DDR4 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
|
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Storage | ||
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI | |

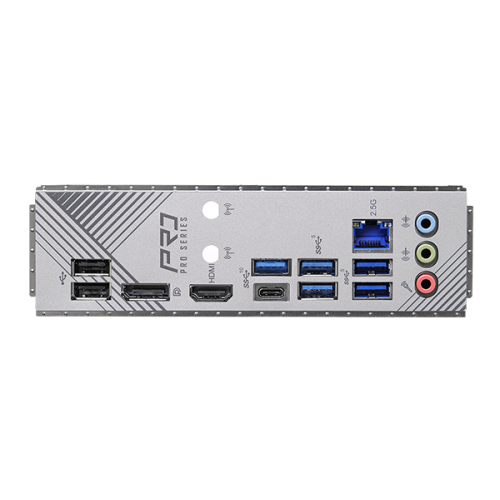

| USB Ports | 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) 1 x USB 3.2 Gen2 Type-A (Rear) 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection |
|
| Display Port | 1 x eDP 1x DisplayPort |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Internal I/O Ports | 1 x eDP Signal Connector 1 x Power LED and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Special feature | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 Year Warranty | |
The ASRock B760 Pro RS DDR5 13th and 12th Gen ATX Motherboard Featuring sturdy components and completely smooth power delivery to the CPU, it offers enhanced performance for gamers. The 6-layer PCB provides stable signal traces and power shapes, delivering lower temperatures and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with the most extreme memory performance! Derived from the “built for stable and reliable” design concept, ASRock does not compromise on any details. This motherboard is built with low-loss materials, and enthusiasts are able to enjoy the boost in DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPOTM capable, and overclocking can be made so affordable, satisfying, and absolutely no sweat at all. Supports 13th Gen, 12th Gen, and next-gen Intel® CoreTM Processors (LGA1700). 10+1+1 Power Phase, Dr.MOS for VCore+GTS Supports DDR5 7200MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi. Graphics Output Options: HDMI, DisplayPort, eDP Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 4 USB 2.0 (2 Rear, 2 Front), Dragon 2.5G LAN Supports ASRock Auto Driver Installer. The ASRock B760 Pro RS DDR5 13th and 12th Gen ATX Motherboard has a 3-year warranty.
