| Basic Information | ||
| Input Voltage | 200VAC - 240VAC | |
| Input Current | 6.3A | |
| Input Frequency | 50Hz | |
| Output Power | +3.3V, +5V, +12V, -12V, +5Vsb | |
| Maximum Power | 650 Watt | |
| Fans | 120 mm | |
| Others | 80 Plus Bronze | |
| Connectors | ||
| Main Power | 1x 24-pin Main Connector | |
| CPU | 1x 8(4+4)pin EPS12V | |
| PCI-E | 2x 8(6+2)pin PCI-E | |
| SATA | 5x SATA | |
| Molex | 3x Molex | |
| Warrnty Information | ||
| Warranty | 5 Years | |

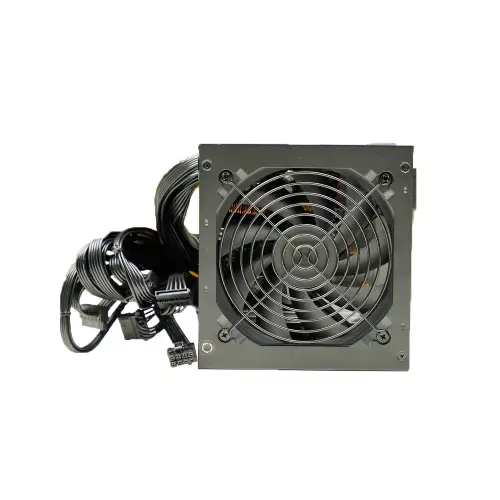

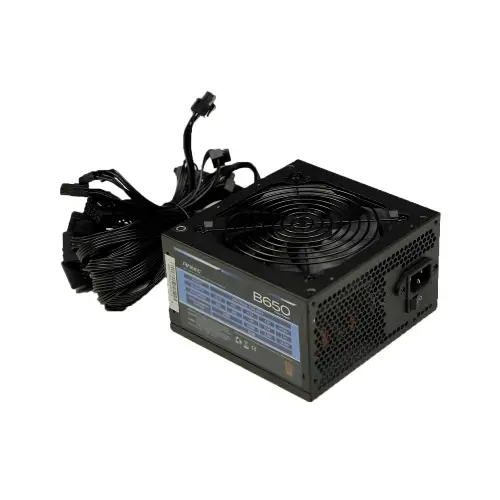

The brand new Antec ATOM B650 650W 80+ Bronze Power Supply is a power supply unit suitable for use in desktop computers. Antec ATOM B650 has a maximum power output of 650W and comes with a 120mm fan for cooling. The input voltage range is between 200VAC - 240VAC, with an input current of 6.3A and a frequency of 50Hz. The output power includes +3.3V, +5V, +12V, -12V, and +5Vsb connectors. ATOM B650 also features several connectors including one 24-pin main connector, one 8(4+4)pin EPS12V connector, two 8(6+2)pin PCI-E connectors, five SATA connectors, and three Molex connectors. The Antec ATOM B650 650W Power Supply is rated as 80 PLUS Bronze, meaning it meets high efficiency standards set by the program. The DC output consists of +3.3V, +5V, +12V, -12V, and +5Vsb, also maximum current ratings of 18A, 16A, 42A, 0.3A, and 2.5A. Total combined power of the output is 110W, 300W, 3.6W, and 12.5W. Also, the total wattage of this power supply is 650W. Antec ATOM B650 650W 80+ Bronze Power Supply comes with 5 years of warranty.
