| Basic Information | ||
| Supported CPU | Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 |
|
| Chipset | AMD B850 |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Memory | ||
| Number of Memory Slots | 4x DDR5 UDIMM | |
| Channel Supported | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | |
| Maximum Memory | 256GB | |
| Supported Memory | Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Network | ||
| LAN | Realtek 8125 2.5G LAN |
|
| Wireless | Wi-Fi 6E | |
| Audio | ||
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| BIOS | ||
| BIOS | Flash BIOS Button |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 |
|
| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| Display Port | 1x DisplayPort 1.4 | |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Others | ||
| Wireless Communication module | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3**, FIPS, FISMA |
|
| Special feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

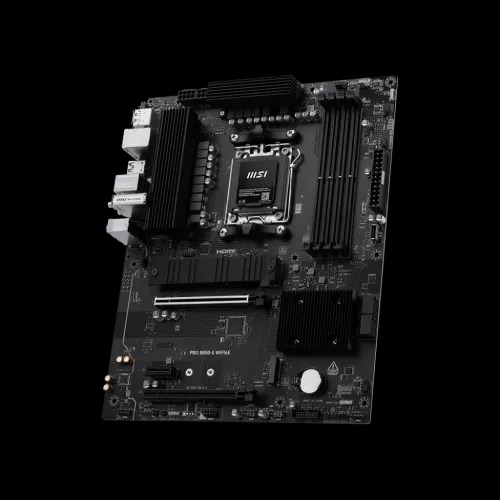

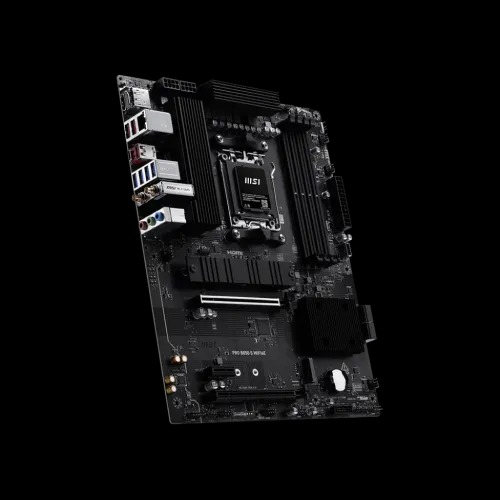

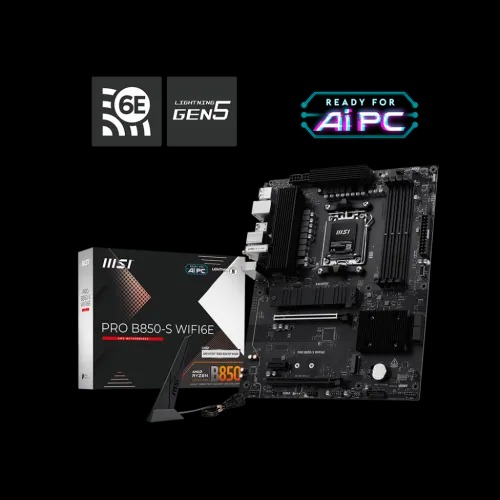

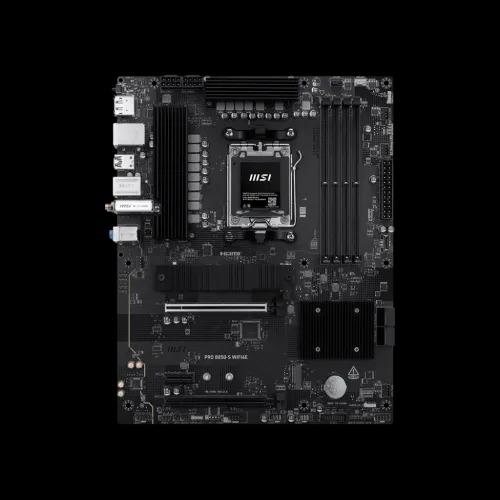

The MSI PRO B850-S WIFI6E AMD B850 Chipset AM5 ATX Motherboard was developed for the latest Ryzen 9000, 8000, and 7000 series processors. It has the AM5 socket and AMD B850 chipset, ensuring compatibility with the most recent AMD desktop CPUs. The MSI PRO B850-S WIFI6E Motherboard supports DDR5 memory speeds up to 8200+ MT/s (OC), with a maximum capacity of 256GB across four UDIMM slots. With PCIe 5.0 and PCIe 4.0 support, it provides excellent flexibility for high-speed GPUs and expansion cards, ensuring that your system is prepared for future updates. The storage options are flexible, with two M.2 slots and four SATA 6G connections. The M.2\_1 slot supports PCIe 5.0 x4 for super-fast NVMe SSDs, and the M.2\_2 slot supports PCIe 4.0 x4. It also supports RAID setups, which provide you with greater flexibility and security while handling your data. This MSI PRO B850-S WIFI6E motherboard features Wi-Fi 6E for better wireless speeds and Bluetooth 5.3 for easy device pairing. The Realtek 2.5G LAN provides fast and dependable wired network connectivity. Data transfers are swift and efficient thanks to the many USB 10Gbps Type A and Type C connectors. The audio experience is boosted with the Realtek ALC897, which provides 7.1-channel high-definition sound. The MSI PRO B850-S WIFI6E AMD B850 Chipset AM5 ATX Motherboard is built in the standard ATX form factor and comes with a three-year warranty.
