| Main Feature | ||
| Antenna | Integrated antenna design Antenna Gain: 2.4G: 3dBi 5G: 3dBi |
|
| Buttons | 1 x Reset button | |
| Frequency | Dual-radio dual-band: 2.4G 11n: 2×2 MIMO 5G 11ax: 4x4 MIMO |
|
| Wireless | Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac | |
| Interface | 3 x 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out) 1 x console port 1 x USB 2.0 port |
|
| Data Rate | 5.375 Gbps | |
| Power | Power Supply: Local power supply (DC 48V/1A) (DC Power adapters should be purchased from third-party vendors separately if needed.) PoE+ (802.3at) PoE (802.3af) – Not recommended: 5G radio is degraded to 2x2 MIMO, and the PoE out of the LAN3/ IoT port is disabled Power Consumption: ＜25.4W |
|
| Environment | Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) |
|
| Physical Specifications | ||
| Dimensions | 220mm ×220mm x48.85mm (Height of the AP only, excluding the mount kit） |
|
| Weight | 1.30kg | |
| Color | White | |
| Warranty Information | ||
| Warranty | 3 Year Warranty | |

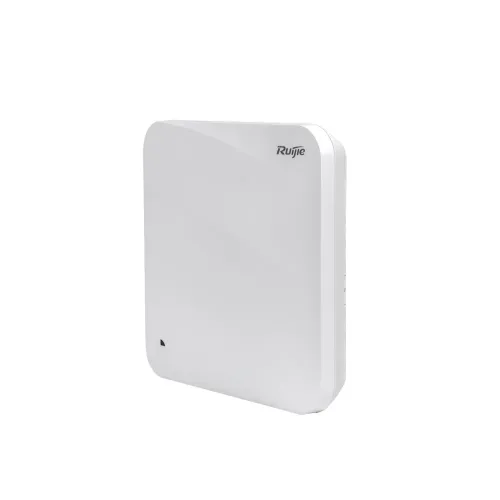

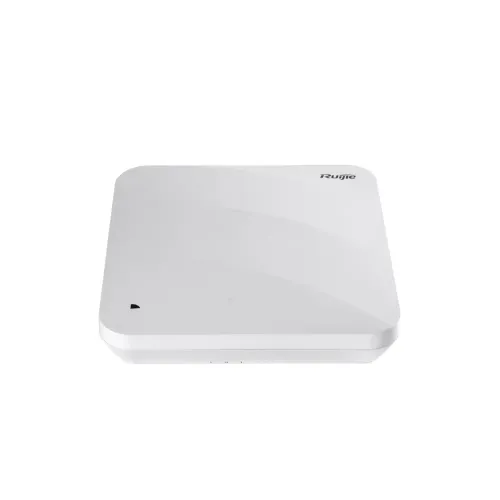

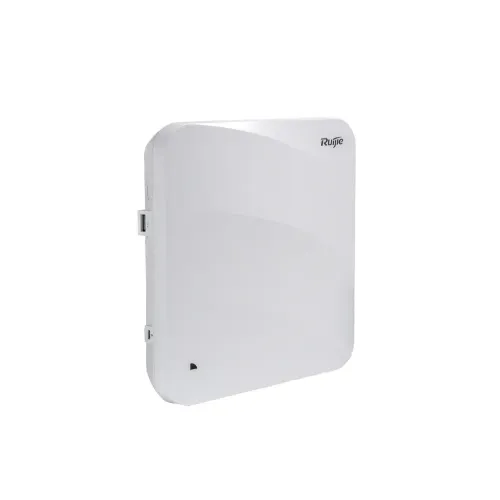

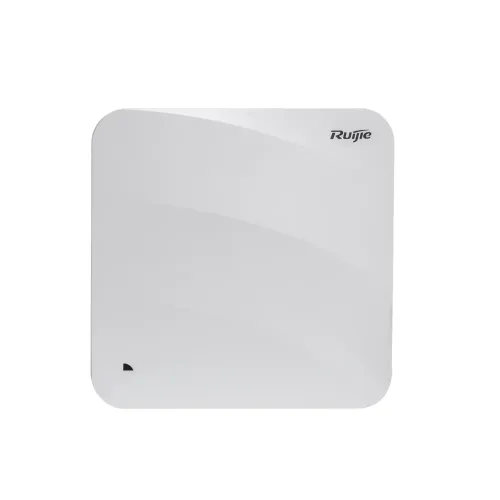

The Ruijie RG-AP840-I Dual-Radio Wi-Fi 6 Wireless Access Point is designed for the majority of indoor scenarios. With the built-in IoT module, enterprise customers can be ready for future IoT expansion to boost operational efficiency and the customer experience. The Ruijie RG-AP840-I supports concurrent dual-band dual-radio (2x2:2 in 2.4GHz, 4x4:4 in 5GHz), up to 6 total spatial streams, and a maximum of 5.2 GHz wireless throughput. Taking advantage of Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, the RG-AP840-I guarantees minimal signal interference and a maximum of 1024 client connections. RG-AP840-I is IoT-ready with an integrated BLE module without the need for an external module or additional investment. With a total of 3 built-in Gigabit LAN ports, the LAN3 port is specially designed for external IoT sensor connections with PoE out (passive) features. Therefore, no extra power adapter is needed for the sensor. RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (optional): targeted for enterprise offices and campuses with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication features, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc. The Ruijie RG-AP840-I Dual-Radio Wi-Fi 6 Wireless Access Point has a 3-year warranty.
