| Basic Information | ||
| Supported CPU | Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS update |
|
| Chipset | AMD A520 | |
| Form Factor | Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L ) | |
| Memory | ||
| Number of Memory Slots | 4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module |
|
| Graphics | ||
| Graphics | Supports DX12 Supports HDCP |
|
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode) 2 x PCIe 3.0 x1 Slot |
|
| Storage | ||
| Supported Storage | Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD AMD A520 Chipset 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2242/ 2260/ 2280 SSD module |
|
| Network | ||
| LAN | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability 1 x LAN port |
|
| Audio | ||
| Audio | ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front) 3 x Audio Jack |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 1 x USB 3.2 (Gen2) Type-C port (1 via internal headers) 6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers) 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports |
|
| DVI-D (s) | 1 x VGA Port | |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header |
|
| Others | ||
| Bundled Software | BullGuard | |
| Special feature | Bundled Software: BullGuard Supports Windows 10(64bit)/ 11(64bit) 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 2 x M.2 Anchor |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

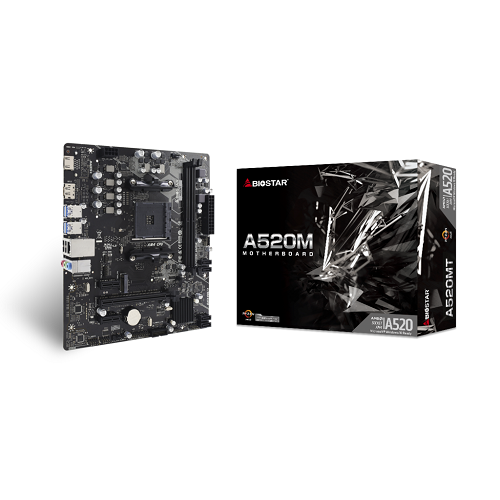

The BIOSTAR AMD Ryzen A520MT 3rd Gen and 4th Gen Micro ATX Motherboard is designed to support both 3rd and 4th generation AMD Ryzen processors. With its AM4 socket, it accommodates the powerful RyzenTM 3rd Gen (Matisse/Renoir) CPUs and the cutting-edge RyzenTM 4th Gen (Vermeer/Cezanne) processors, ensuring seamless compatibility for a wide range of computing needs. The A520 chipset from AMD provides a solid foundation for the motherboard, delivering reliable performance and efficiency. With its Micro ATX form factor measuring 23.5cm by 20.8cm, this board is compact yet robust, making it ideal for space-conscious builds without compromising on functionality. Memory-wise, the A520MT supports up to 64GB of DDR4 RAM across four DIMM slots. For optimal memory configurations, users can take advantage of dual-channel DDR4, reaching impressive speeds up to 4400+ (OC) for 4th generation AMD Ryzen Processors and even higher overclocking for specific models. This enables smooth multitasking, enhanced productivity, and an excellent gaming experience. Storage options are well covered with one M.2 socket and four SATA III (6 Gb/s) ports. The M.2 socket, compatible with various SSD modules (Type 2242, 2260, and 2280), supports PCIe 3.0 x4 and SATA III interfaces, delivering blazing-fast data transfer rates of up to 32 GB/s. Additionally, the four SATA III connectors support AHCI and RAID 0, 1, and 10 configurations, giving users flexibility in setting up their storage arrays. In terms of connectivity, the motherboard is equipped with multiple ports and connectors. These include a USB 3.2 (Gen2) Type-C port, six USB 3.2 (Gen1) ports, and six USB 2.0 ports. For display output, there's an HDMI port and a VGA port available. The onboard Realtek RTL8111H LAN controller ensures reliable and fast network connectivity with support for speeds of 10/100/1000 Mb/s. To enrich the audio experience, the motherboard features the ALC897 audio chipset, offering 7.1 channels of high-definition audio and Hi-Fi support for the front audio panel. The system is rounded out with various headers and connectors for CPU and system fans, the front panel, front audio, and more, providing ease of connectivity and expandability. Biostar includes bundled software, such as BullGuard, to enhance security and ensure a smooth computing experience. This motherboard is optimized for Windows 10 and Windows 11 (64-bit) operating systems. The BIOSTAR AMD Ryzen A520MT 3rd Gen and 4th Gen Micro ATX Motherboard has a 3-year Warranty.
