| Basic Information | ||
| Supported CPU | Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS update |
|
| Chipset | AMD B550 | |
| Form Factor | Micro ATX Form Factor Dimension: 20.8cm x 24.4cm ( W x L ) | |
| Memory | ||
| Number of Memory Slots | 4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module |
|
| Graphics | ||
| Graphics | Supports DX12 Supports HDCP |
|
| Expansion Slots | ||
| Expansion Slots | PCIe M.2 4.0 | |
| Storage | ||
| Supported Storage | Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2242/ 2260/ 2280 SSD module AMD Ryzen 5000/3000 Series Processors Supports PCIe 4.0 x 4 (64Gb/s) & SATA III (6.0Gb/s) SSD AMD Ryzen 5000 G/4000 G Series Processors Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD AMD B550 Chipset 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 * M.2 (M2_PCIEG4_64G_SATA) Socket: The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse & 4th Gen Vermeer. |
|
| Network | ||
| LAN | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability 1 x LAN port |
|
| Audio | ||
| Audio | ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front) 3 x Audio Jack |
|

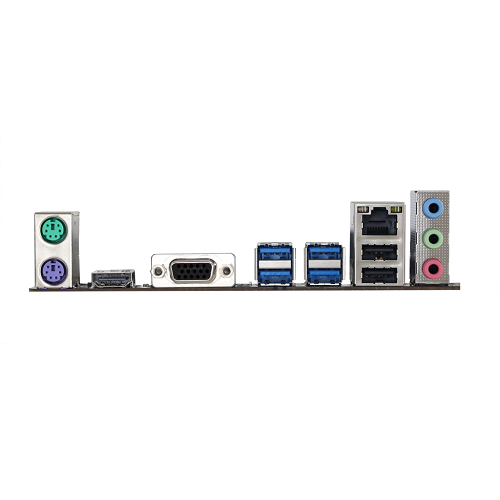

| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports |
|
| DVI-D (s) | 1 x VGA Port | |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header |
|
| Others | ||
| Bundled Software | BullGuard | |
| Special feature | Bundled Software: BullGuard Supports Windows 10(64bit) / 11(64bit) 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor Supports 100% Solid capacitor A.I FAN |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

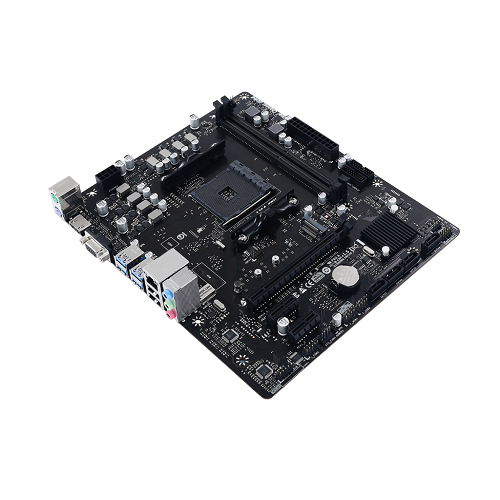

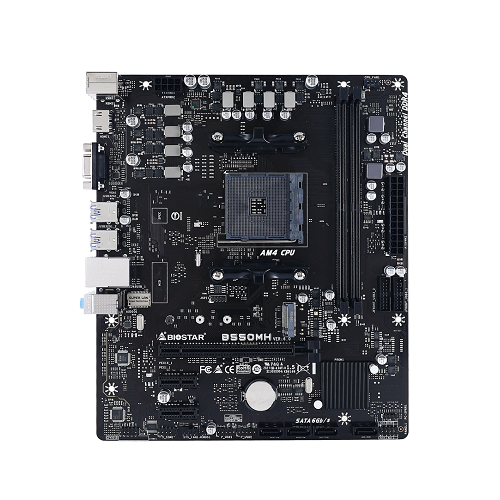

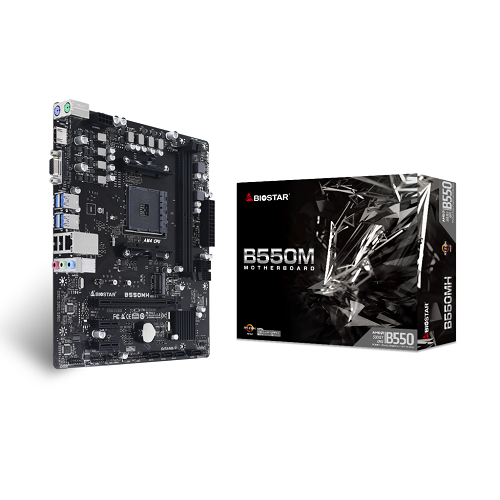

The BIOSTAR AMD Ryzen B550MH 3rd and 4th Gen Micro ATX Motherboard is designed to support AMD Ryzen 3rd Gen (Matisse/Renoir) and Ryzen 4th Gen (Vermeer/Cezanne) processors, with the added capability to accommodate future AMD Ryzen processors through BIOS updates. This forward-looking compatibility ensures that users can stay up-to-date with the latest CPU advancements without the need for a complete motherboard upgrade. The motherboard's AM4 socket provides a solid foundation for the powerful Ryzen processors, enabling users to harness their full potential. With support for up to 64 GB of DDR4 memory across two DIMM slots, users can experience smooth multitasking and impressive system performance. The memory speeds vary depending on the CPU model, with the fastest configurations reaching up to DDR4 4933+ MHz. The graphics capabilities of the B550MH are determined by the installed CPU, making it a flexible choice for various computing needs. The motherboard supports DirectX 12, ensuring smooth and immersive visuals for gaming and multimedia applications. Additionally, it is equipped with an HDMI port, making it convenient for connecting to external displays. In terms of storage, the B550MH offers a range of options to accommodate various storage needs. It features a 1 M.2 socket that supports both PCIe 4.0 x4 and SATA III SSDs, providing lightning-fast data transfer rates for high-speed storage solutions. Furthermore, the motherboard offers four SATA III connectors, which support AHCI and RAID 0, 1, and 10 configurations for traditional storage drives. Connectivity is well addressed with a variety of ports and connectors. There are 8 USB 3.2 Gen1 ports (4 on the rear I/O panel and 4 via internal headers) for high-speed data transfer and 6 USB 2.0 ports (2 on the rear I/O panel and 4 via internal headers) for additional peripherals. The Realtek RTL8111H LAN chip delivers reliable and fast networking, providing a stable internet connection for online activities. The audio capabilities of the B550MH are powered by the ALC897 chip, delivering 7.1 channels of high-definition audio with Hi-Fi support. This ensures crystal-clear sound output and an immersive audio experience for both entertainment and gaming. The motherboard is equipped with multiple PCIe slots, allowing users to install powerful graphics cards and expansion cards as needed. The exact configuration of the PCIe slots depends on the CPU installed, offering flexibility for different setups. To ensure stability and longevity, the B550MH is equipped with 100% solid capacitors, providing reliable power delivery to the components. The included AI Fan software allows users to optimize and customize their cooling solution for efficient heat management, enhancing overall system performance. The BIOSTAR AMD Ryzen B550MH 3rd and 4th Gen Micro ATX Motherboard has a 3-year Warranty.
